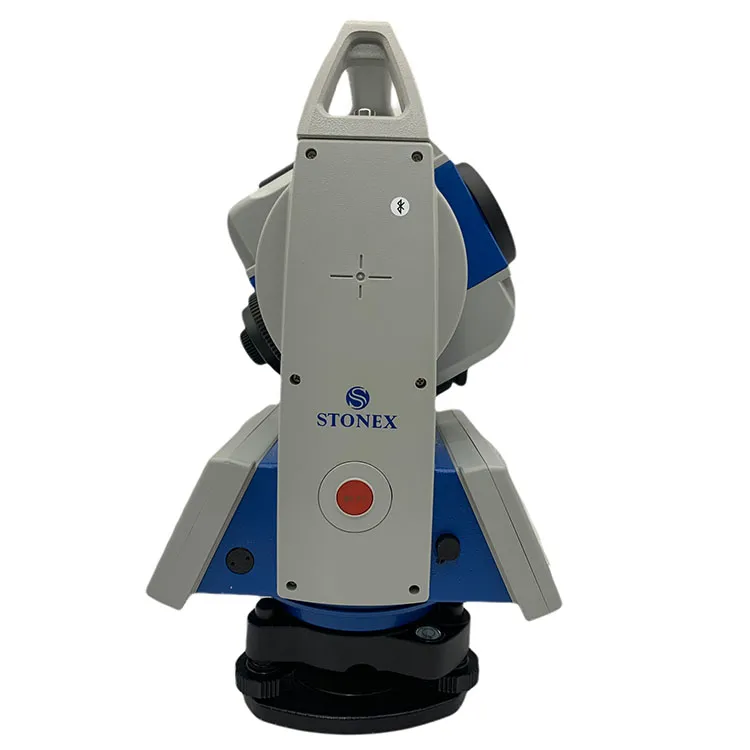

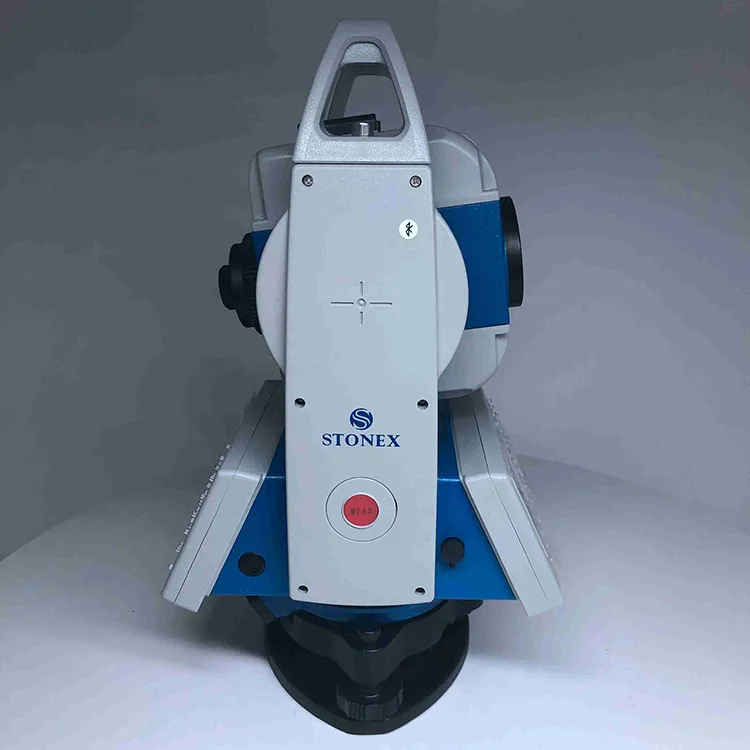

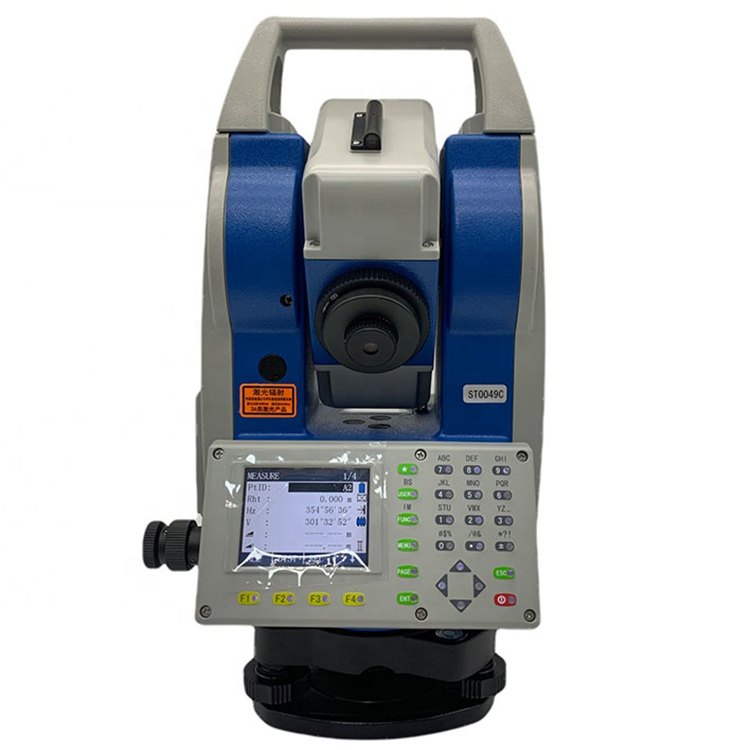

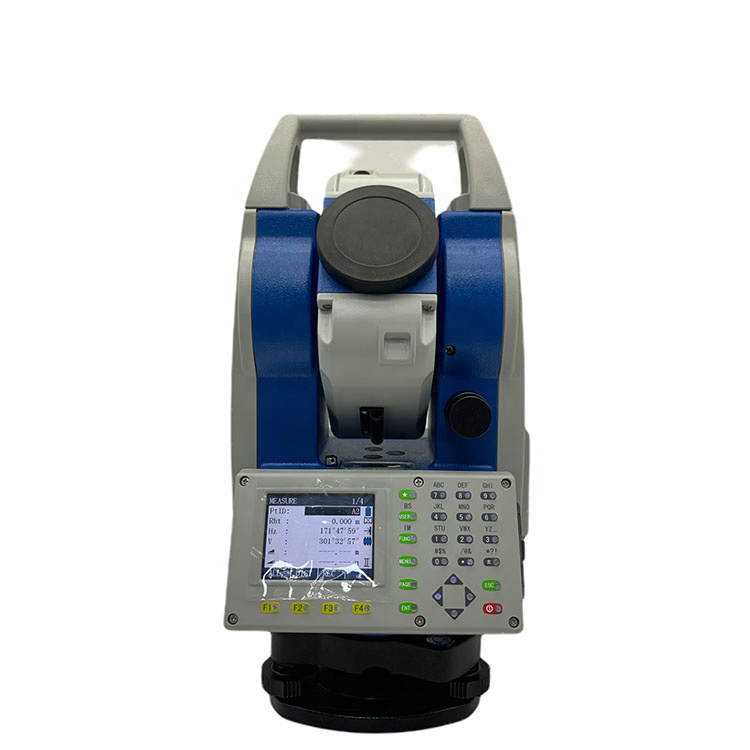

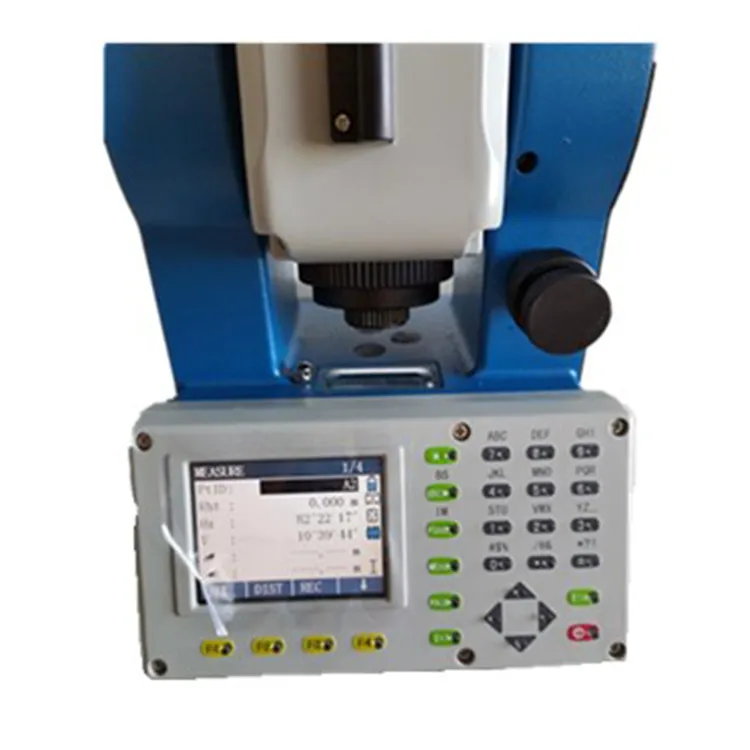

Stonex Single Prism 3000m More Powerfor 30X Total Station China
ModelR2CTelescopeMirror tube length156mmimagingPositiveEffective diameter of objective lens(EDM)45mmMagnification30Xfield1°30Discrimination (JIS)3.5Shortest range of visibility1.0mRange finderRanging light source(visible lase)650~690nmSpot diameter12mm/50mm ellipseLaser gradeClass3Measuring ......
Send Inquiry
Product Description
Model | R2C | ||
Telescope | Mirror tube length | 156mm | |
imaging | Positive | ||
Effective diameter of objective lens(EDM) | 45mm | ||
Magnification | 30X | ||
field | 1°30′ | ||
Discrimination (JIS) | 3.5″ | ||
Shortest range of visibility | 1.0m | ||
Range finder | Ranging light source | (visible lase)650~690nm | |
Spot diameter | 12mm/50mm ellipse | ||
Laser grade | Class3 | ||
Measuring range(good weather condition) | Non-prism | 600m | |
Reflector RP60 | 1000m | ||
Mini prism | 1200m | ||
Single prism | 5000m | ||
Precision of distance measurement | Prism | ±(2+2×10-6·D)mm | |
Reflector,Non-prism | ±(3+2×10-6·D)mm | ||
Measurement time | 1.0s/0.3s(precision / tracking); initial:2.5s | ||
Minimum reading of distance measurement | Precision measurement mode:1mm | ||
Tracking measurement mode:10mm | |||
Range of temperature setting | -40ºC~+60ºC | ||
temperature range | 1ºC(automatic correction) | ||
Atmospheric correction | 500hPa-1500 hPa | ||
atmospheric pressure | 1hPa(automatic correction) | ||
Prism constant correction | -99.9mm ~ +99.9mm | ||
