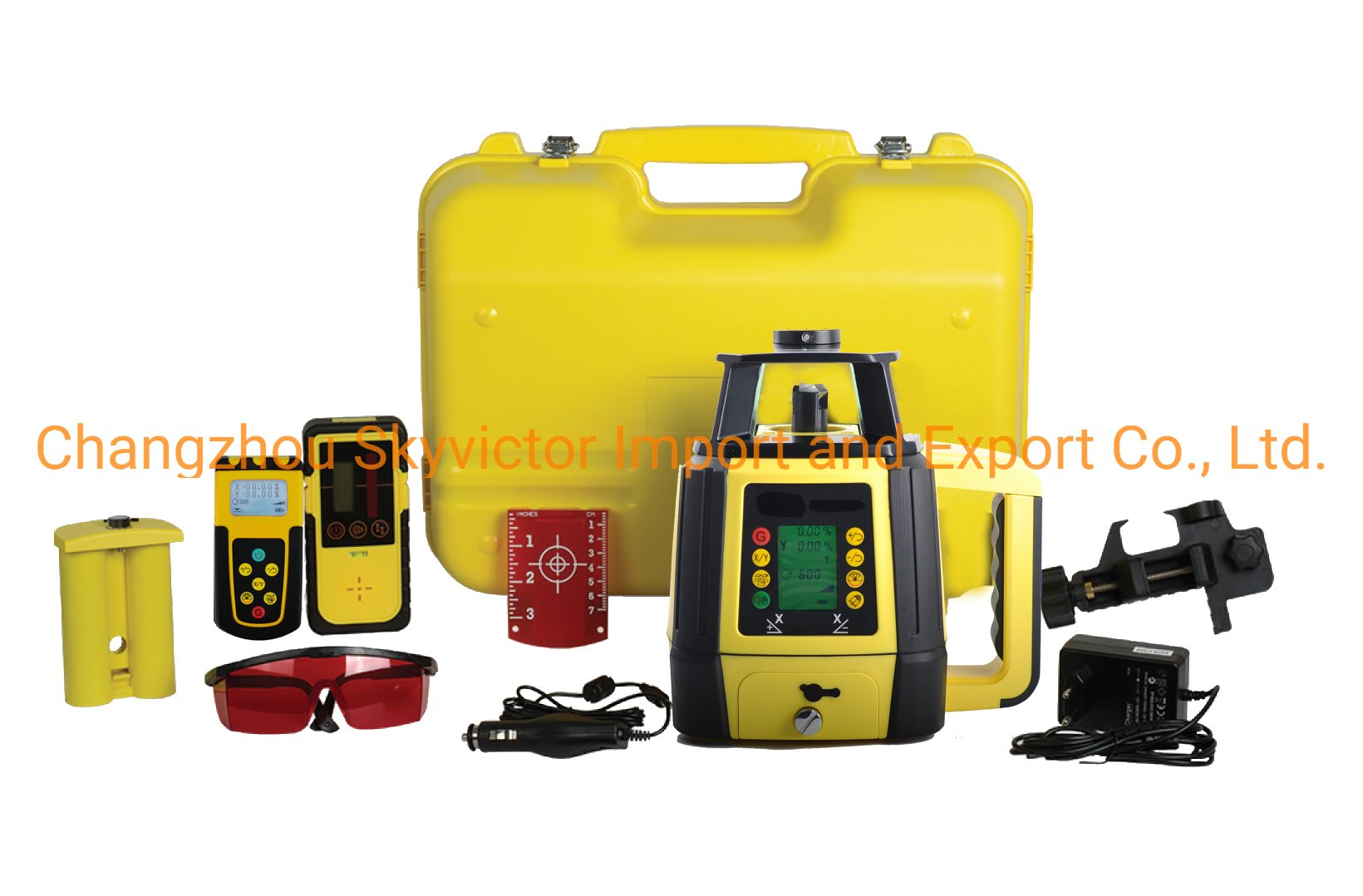

Dual Grade Automatic Leveling Rotary Laser Level Total Station (SRE102-2S)
Rotary laser level SRE102-2S: Automatic leveling dual gradeFeatures of rotary laser level:* Digital Gradient Setting rotary laser level: Deviation From The Horizontal Plane Can Set Digitally in X and Y Axes.* The range is from -8% to +8%* Sensor-Automatic: Electronic Positioning Motors Controlled by......
Send Inquiry
Product Description
Rotary laser level SRE102-2S: Automatic leveling dual gradeFeatures of rotary laser level:
* Digital Gradient Setting rotary laser level: Deviation From The Horizontal Plane Can Set Digitally in X and Y Axes.
* The range is from -8% to +8%
* Sensor-Automatic: Electronic Positioning Motors Controlled by Sensors Make Horizontal Alignment Automatically.
* H. I. (Tilt function) Alert Protection, alarm system In slope mode
* Speed of Rotate Head: 60; 120; 300; 600 R. P. M
* All Settings Are Presented on The Large LC Display.
* Robust Waterproof Housing.
* Automatically Self-Leveling in Both Horizontal and Vertical by Step Motor Control;
* Wide Leveling Range of +/-10% for Fast Setup.
* All Functions Can Be Controlled With The Remote Control From a Distance of up to a Maximum of 70 M.
Specifications of rotary laser level:
| Accuracy: ± 20"(± 1 mm @ 10 m) |
| Slope range: ± 8.00% |
| Automatic self-leveling range: 5° |
| Four head speeds: 60; 120; 300; 600 R. P. M. |
| Four scan widths: 10° ; 45° ; 90° ; 180° |
| Operation range: Dia. 500m (with detector) |
| IR Remote control distance: 20m (Standard remote) |
| Power supply: DC 4.8-6V(4 sections sub-C Ni-MH battery) |
| Battery pack replaceable(Ni-MH battery pack or Alkaline battery pack, optional) |
| Dimension: 160(L) X 160(W)X 185(H)mm |
