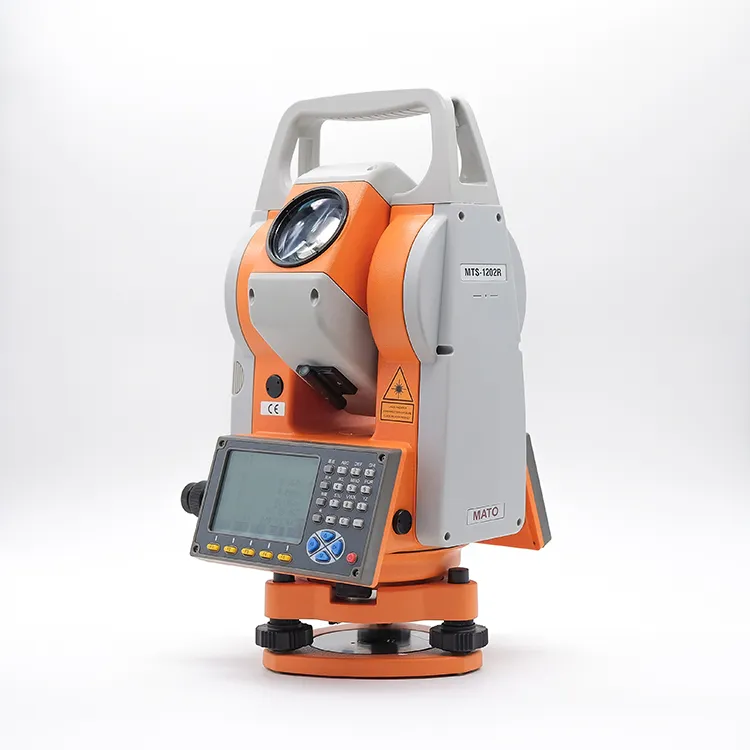

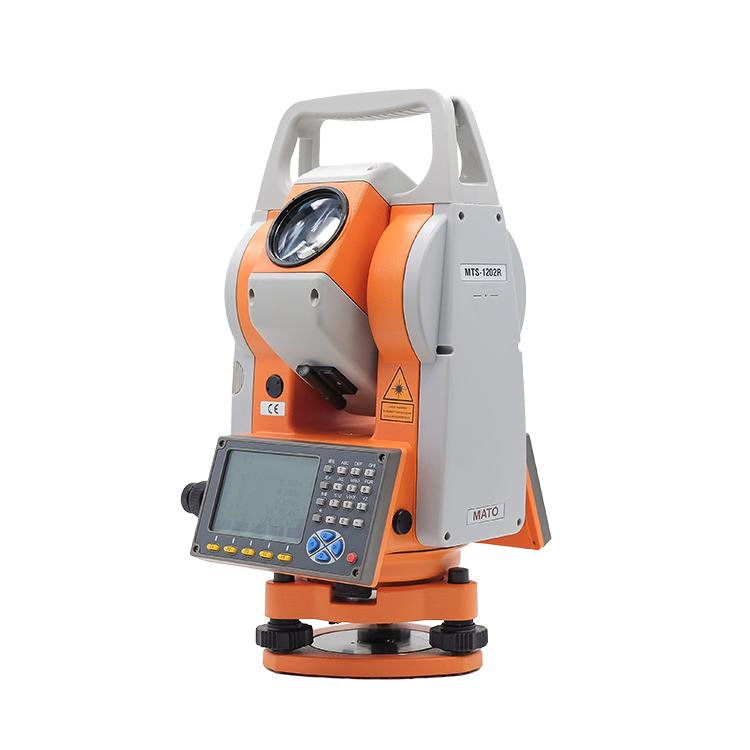

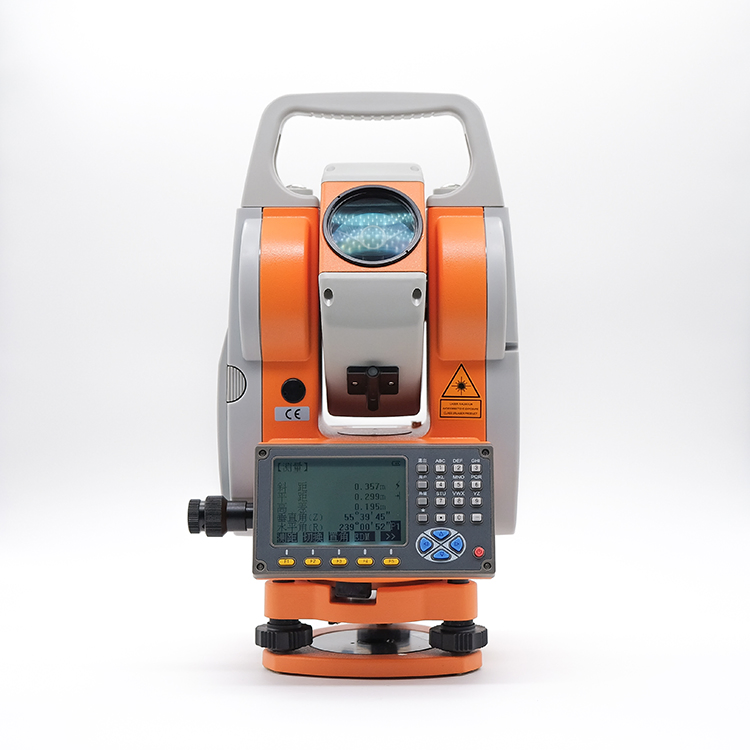

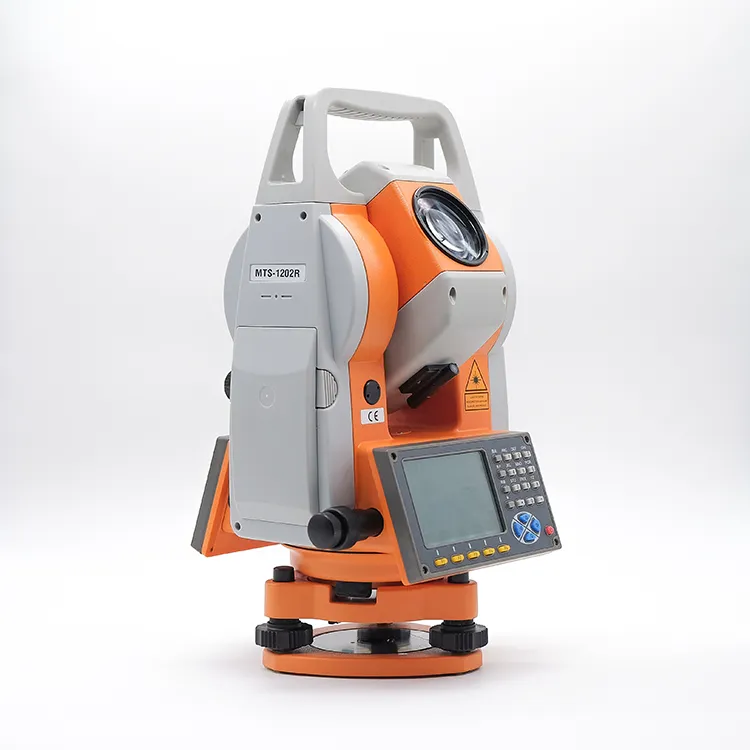

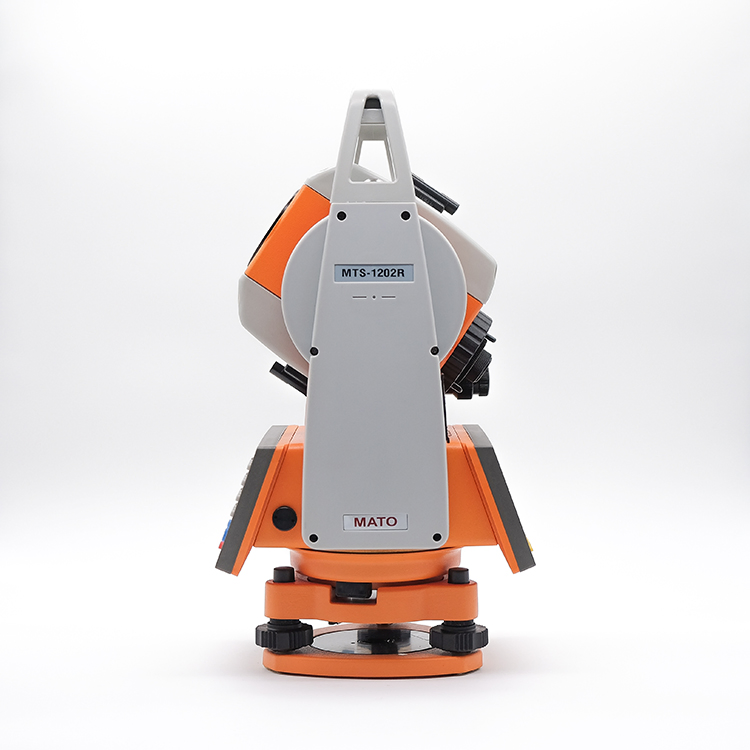

Measuring Surveying Instrument Topcon Total Station 30X Magnification
Reflectorless Total Station HMT-800 Double LCD DisplayThe high-value, low-cost surveying instruments are designed specifically forconstruction and geographic measurement.MTS1200 Series - professional Surveying&mapping All-round Total StationMain Technical SpecificationMTS1201RMTS1202RMTS1202R+MT......
Send Inquiry
Product Description
Reflectorless Total Station HMT-800 Double LCD Display
The high-value, low-cost surveying instruments are designed specifically for
construction and geographic measurement.
| MTS1200 Series - professional Surveying&mapping All-round Total Station | |||||||||||||||||||||||||||
| Main Technical Specification | MTS1201R | MTS1202R | MTS1202R+ | MTS1202R8 | MTS1205R | ||||||||||||||||||||||
| Telescope | Magnification | 30× | |||||||||||||||||||||||||
| Field angle | 1°30′ | ||||||||||||||||||||||||||
| Image | Erect | ||||||||||||||||||||||||||
| Angle measurement | Minimum reading | 0.5″ | 1″ | 1″ | 1″ | 1″ | |||||||||||||||||||||
| Accuracy | 1″ | 2″ | 5″ | ||||||||||||||||||||||||
| Distance measuring | Minimum reading | 0.1 mm | 1 mm | 1 mm | 1 mm | 1 mm | |||||||||||||||||||||
| Prism accuracy | ±(1 mm+1 ppm·D) | ±(2 mm+2 ppm·D) | |||||||||||||||||||||||||
| Reflector accuracy | ±(1 mm+1 ppm·D) | ±(2 mm+2 ppm·D) | |||||||||||||||||||||||||
| Non-Prism accuracy | ±( 5 mm+3 ppm·D) | ||||||||||||||||||||||||||
| Single prism range | 5000 m | 5000 m | 7500 m | 7500 m | 5000 m | ||||||||||||||||||||||
| Reflector range | 800 m | 800 m | 1000 m | 1000 m | 800 m | ||||||||||||||||||||||
| Non-Prism Range | 400 m | 400 m | 600 m | 800 m | 400 m | ||||||||||||||||||||||
| Measuring time | 1.8sec | 1.0sec | 0.4sec | 0.4sec | 1.0sec | ||||||||||||||||||||||
| Data management | Memory point | 50,000 points | |||||||||||||||||||||||||
| SD card | 2 G - 16 G | ||||||||||||||||||||||||||
| USB drive | Optional | ||||||||||||||||||||||||||
| Bluetooth | Optional | ||||||||||||||||||||||||||
| Display | Dual 192×128 pixel | ||||||||||||||||||||||||||
| Working temperature | - 20 oC - + 55 oC | ||||||||||||||||||||||||||
