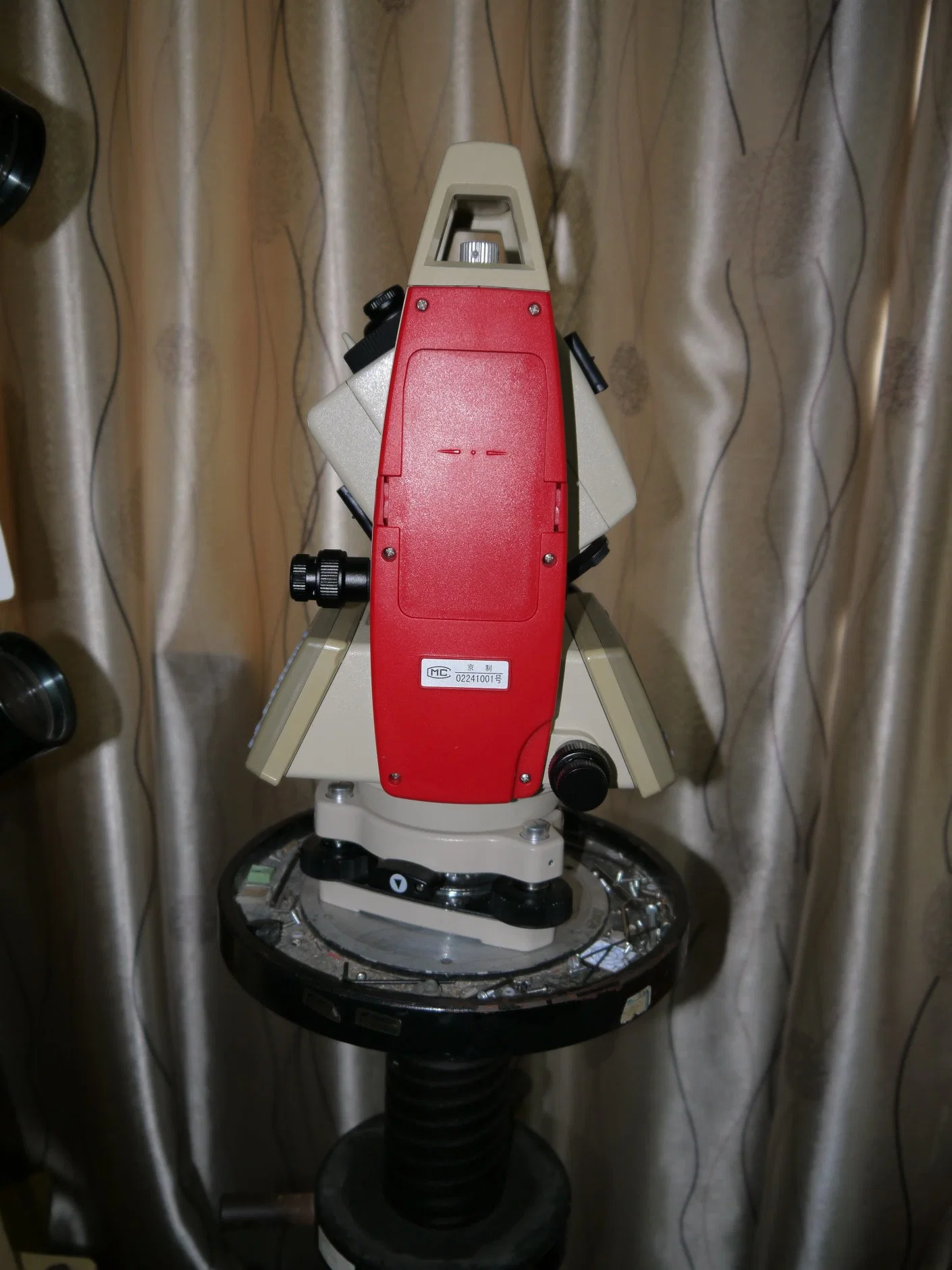

Kolida Kts-442r6LC Prismless 600m Total Station
Contact usShanghai Galaxy International Trade CO.,LtdADD: Rm.306-308,No.5 Building,Jinglian Road 439#,Minhang District,Shanghai,ChinaFAX: +86-21-51685021TELL: +86-21-64396577 Product DescriptionKOLIDA brand reflectorless 600m Total Station Instrument Survey And Construction SpecificationsKTS-442R6......
Send Inquiry
Product Description
Contact us
Shanghai Galaxy International Trade CO.,Ltd
ADD: Rm.306-308,No.5 Building,Jinglian Road 439#,Minhang District,Shanghai,China
FAX: +86-21-51685021
TELL: +86-21-64396577
Product Description
KOLIDA brand reflectorless 600m Total Station Instrument Survey And Construction
Specifications
| KTS-442R6LC | |
| Measuring Range | |
| 1P | 5.0km |
| 3P | 8-10km |
| Mini prism | 800m |
| Non prism | 600m |
| Digital Display | Maximum:99999999.9999 Minimun:0.1mm |
| Accuracy | with prism 2mm+2ppm, without prism 3mm+2ppm |
| Measuring time | Tracking 0.1s, Fine 0.3s (optimal) |
| Atmospheric Correction | Automatic Correction by Inputting Parameter |
| Prism Constant | Automatic Correction by Inputting Parameter |
| Angle Measurement | |
| Measurement Method | Absolute Encoding |
| Diameter of the Raster Disk | 79mm |
| Mini Reading | 1" / 5" Optional |
| Accuracy | 2" |
| Detection Method | Horizontal: Dual |
| Telescope | |
| Image | Erect |
| Length | 154mm |
| Effective Aperture | 45mm, (DTM: 50mm) |
| Magnification | 30X |
| Field of View | 1°30' |
| Resolving Power | 3" |
| Minmum Focus | 1m |
| Compensation | |
| System | Dual axis liquid-electric |
| Working Range | ±3' |
| Resolving Power | 1" |
| Sensitivity of Vials | |
| Plate Vial | 30" /2mm |
| Circular Vial | 8' /2mm |
| Optical Plumment | |
| Image | Erect |
| Magnification | 3X |
| Focusing Range | 0.5m - ∞ |
| Field of View | 5° |
| Data Storage & Communication | |
| Internal Memory | 2M/24000 points |
| External Memory | SD-Card (up to 32G) |
| Communication Port | RS-232, mini-USB |
| Display | |
| Type | Dual sides, 6 lines |
| Battery | |
| Power Supply | Rechargeable Ni-H battery(2700 mAH) |
| Voltage | 6 V DC |
| Operation Time | 10 hours |
| Dimension & Weight | |
| Dimension | 160mm X 150mm X 330mm |
| Weight | 5.8kg |
| Environmental Specification | |
| Dust/water(IEC60529) | IP56 |
| Working Temerature | -20ºC-50ºC |
| Humidity | 95%,non-condensing |
