Geophone Sensors Mems Geophone Geophone Kit Sm 24 Geophone Seismic Sensor Geophones for Sale Geophone
Geophone Sensors Mems geophone Geophone kit SM 24 Geophone Seismic Sensor Geophones for sale Geophone 4.5 hz Model &SpecificationCDJ-Z2CCDJ-Z2.5CCDJ-Z4CDJ-Z4.5CDJ-Z10CDJ-Z15CDJ-Z28CDJ-Z30CDJ-Z38CDJ-Z40CDJ-Z60CDJ-Z100 2HzVertical2.5HzVertical4HzVertical4.5HzVertical10HzVertical15HzVertical28Hz......
Send Inquiry
Product Description
Geophone Sensors Mems geophone Geophone kit SM 24 Geophone Seismic Sensor Geophones for sale Geophone 4.5 hz
Single Geophone Standard Configuration :

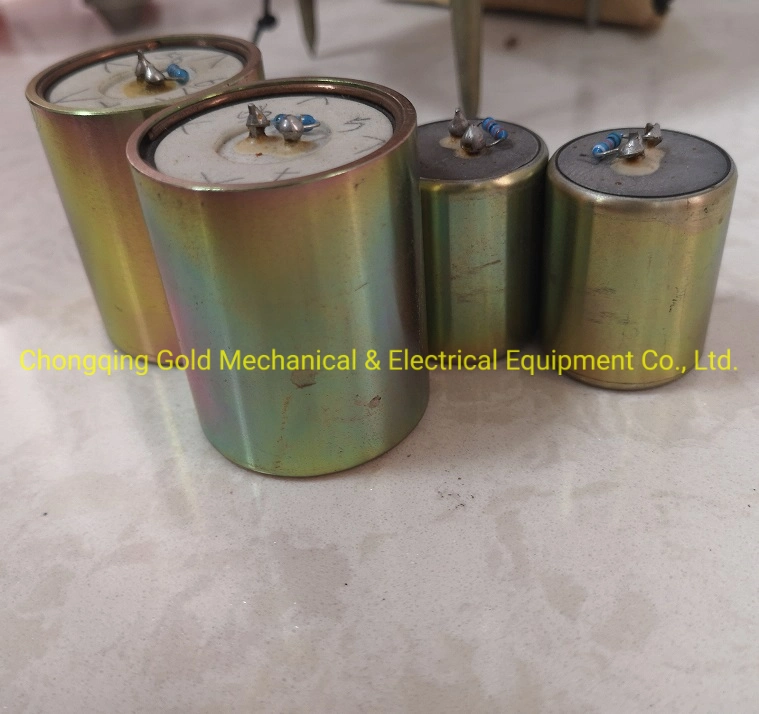

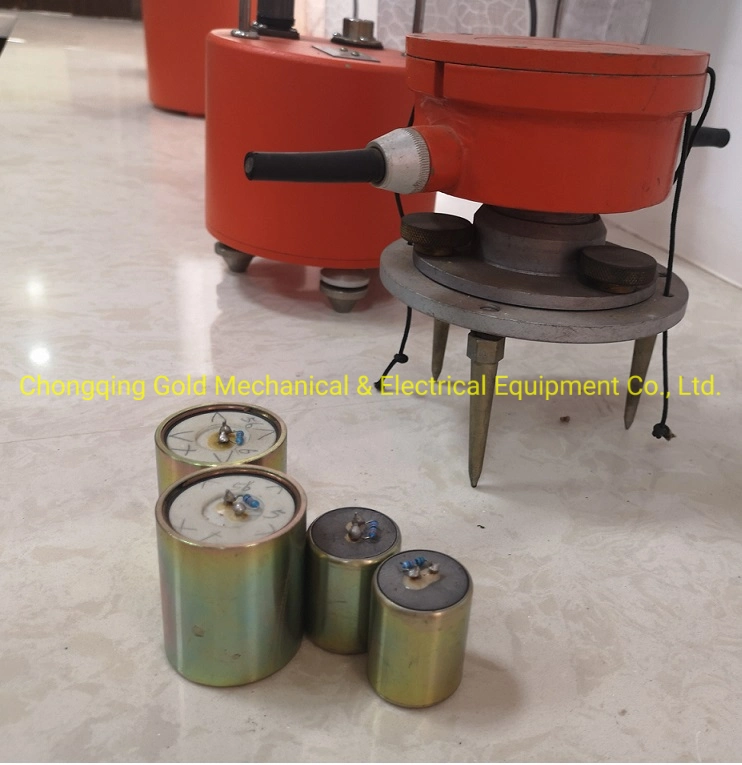

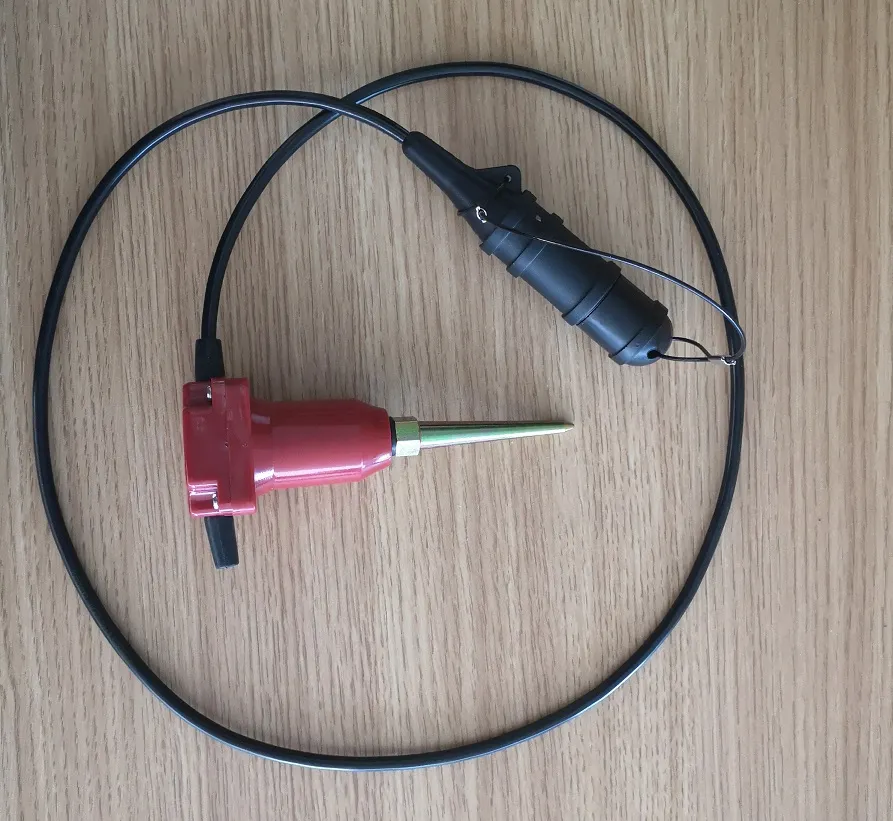

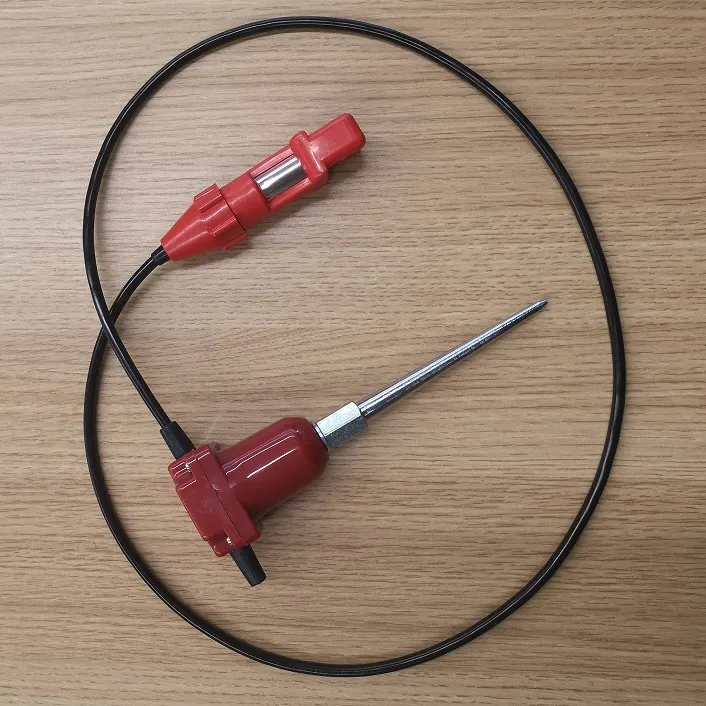

Geophone Element with land case and 1m cable;
Geophone Element with marsh case and 1m cable;
If other length or configuration is requested, please contact us for more details.
| Model &Specification | CDJ-Z2C | CDJ-Z2.5C | CDJ-Z4 | CDJ-Z4.5 | CDJ-Z10 | CDJ-Z15 | CDJ-Z28 | CDJ-Z30 | CDJ-Z38 | CDJ-Z40 | CDJ-Z60 | CDJ-Z100 | ||
| 2Hz Vertical | 2.5Hz Vertical | 4Hz Vertical | 4.5Hz Vertical | 10Hz Vertical | 15Hz Vertical | 28Hz Vertical | 30Hz Vertical | 38Hz Vertical | 40Hz Vertical | 60Hz Vertical | 100Hz Vertical | |||
| Natural frequencyFn(Hz) | 2±10% | 2.5±10% | 4±10% | 4.5±10% | 10±5% | 15±5% | 28±5% | 30±5% | 38±5% | 40±5% | 60±5% | 100±5% | ||
| Sensitivity G(v/cm/s) | 2±10% | 0.28±5% | 0.26±5% | 0.30±5% | 0.25±5% | |||||||||
| Coil resistance Rc(KΩ) | 6040±5% | 380±5% | 500±5% | 650±5% | 1060±5% | 1080±5% | ||||||||
| Internal resistance R(KΩ) | 5800±5% | 5650±5% | 345±5% | 335±5% | 310±5% | 415±5% | 560±5% | 800±5% | 1020±5% | |||||
| Damping coefficient Bt: | 0.7±10% | 0.58±10% | 0.62±10% | 0.6±10% | 0.5±5% | |||||||||
| Harmonic distortion D(%) | ≤0.2 | |||||||||||||
| Insulation resistance R(MΩ) | ≥20 | |||||||||||||
| Maximum displacement P-P(mm) | 3 | 2 | ||||||||||||
| Suspension mass M(g) | 60 | 13 | 8.5 | 8 | 6.3 | 5.9 | ||||||||
| Operating temperature(ºC) | -25~+55 | -40~+70 | ||||||||||||
| Size | Core | Diameter(mm) | φ38.5 | φ27.2 | ||||||||||
| Height(mm) | 47 | 34 | 32 | |||||||||||
| Weight(kg) | 0.25 | 85 | 86 | 78 | ||||||||||
| Cover | Diameter(mm) | 50x60 | 45x55 | |||||||||||
| Height(mm) | 87 | 76 | ||||||||||||
| Weight(kg) | 0.48 | 0.51 | 0.31 | 0.247 | ||||||||||
Single Geophone Standard Configuration :
Geophone Element with land case and 1m cable;
Geophone Element with marsh case and 1m cable;
If other length or configuration is requested, please contact us for more details.
