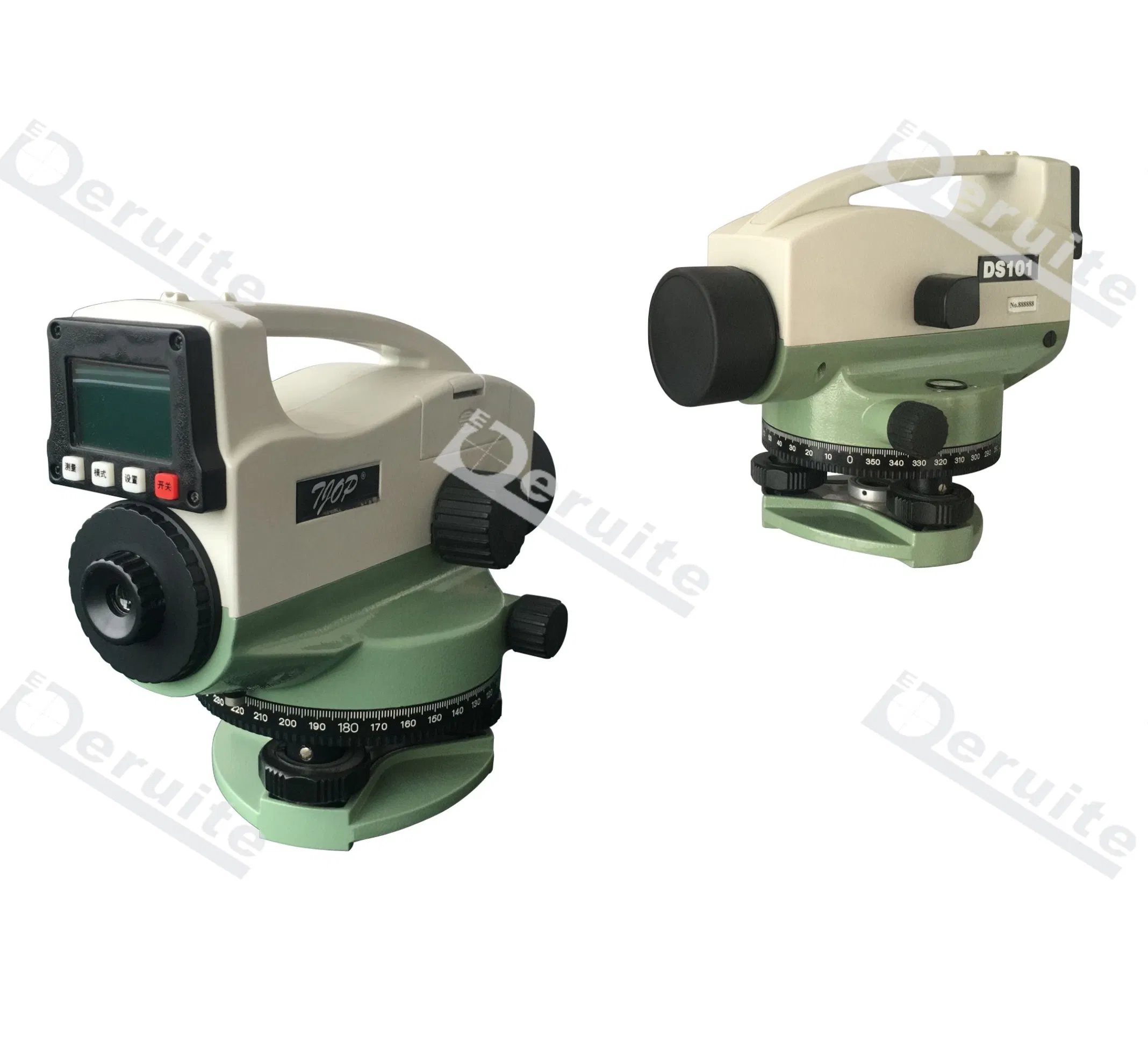

Digital Level Ds101

1. Determining elevation and distances with one button

2. Automatic reading mode and manual reading mode are both available

3. The user interface is simple and friendlyz

4. Can be equipped with a large capacity rechargeable battery

5. Magnetic damping compensator

 SPECIFICATIONS:

Digitized Measurement

Elevation determination accuracy (Standard error per kilometer):1.5mm with ordinary sopwith staff / 0.7mm with high precision sopwithstaff

Minimum unit displayed for elevation:0.1mm

Maximum determining distance:110m (In good weather condition and good vision)

Minimum determining distance: 1.5m

Minimum determining unit:10mm

Measuring time required:3s

Optical Measurement

Elevation determination accuracy:1mm

Maximum determining range:110m (In good weather condition and good vision)

Minimum determining range:1.5m

Additive constant: 0

Multiplication constant:100

Telescope

Magnification:32x

Aperture: 40mm

Magnetic Damping Compensator

Compensation range:± 12"

Compensation precision:± 0.3"

Bubble Level Accuracy:8'/2mm

Display

Resolutions:128 x 64

Back light:Available

Others

Power Source:Four AA batteries,Battery life 72hours

Working temperature:-20C to +50C

NET WEIGHT: 2.5KGS
