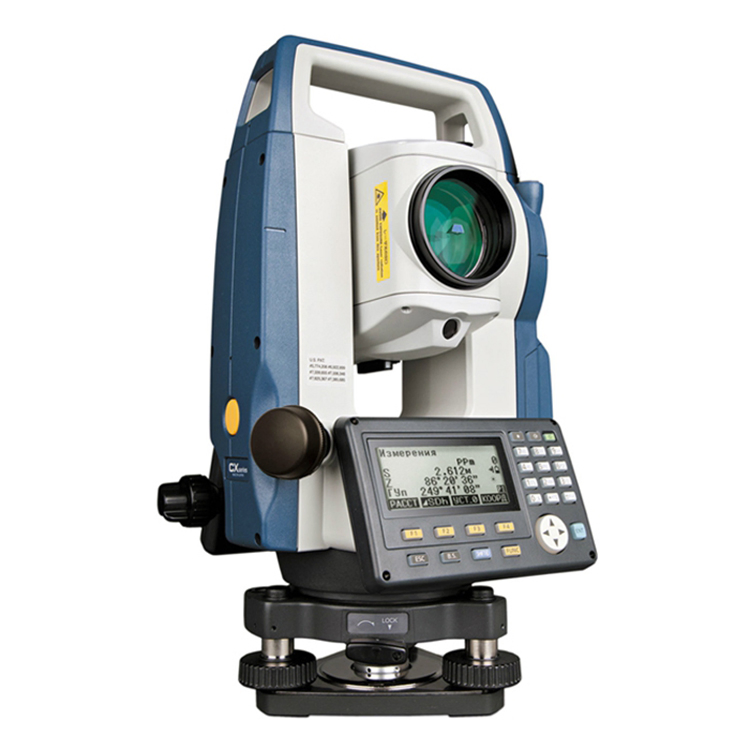

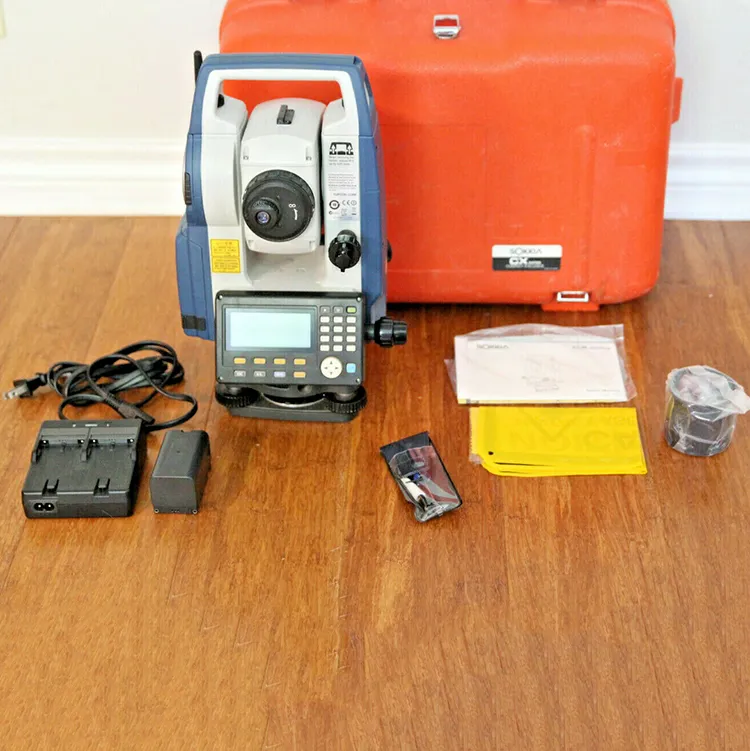

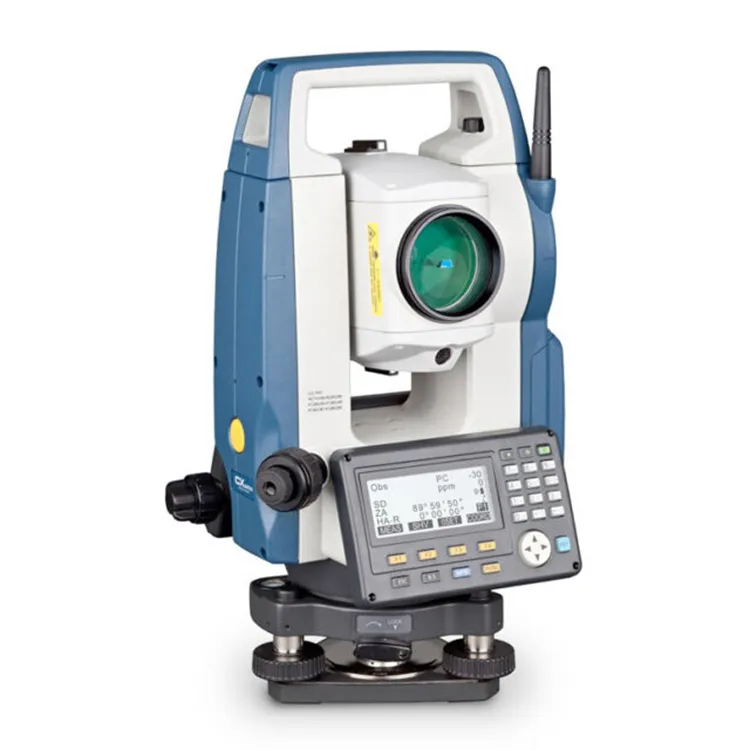

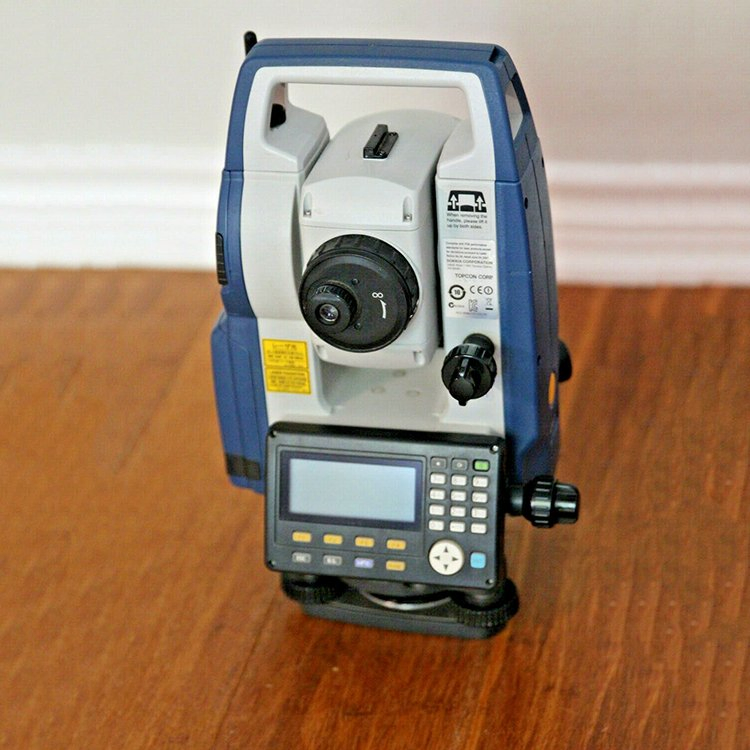

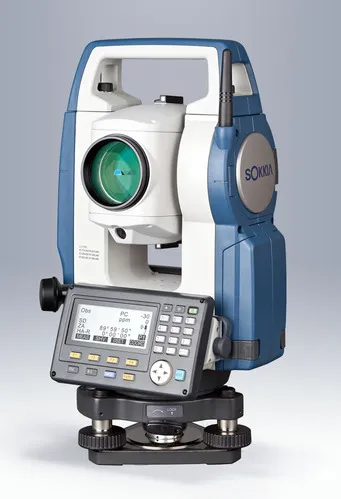

400m Reflectorless Total Station 30X Sokkia Cx105 3000m

Product Description

Model	CX-105
Telescope
Magnification / Resolving power	30x / 2.5"
Others	Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (48mm (1.9in.) for EDM),Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.), Reticle illumination: 5 brightness levels

Angle measurement
Display Resolution	1" / 5"(0.0002 / 0.001gon, 0.005 / 0.02mil)


Accuracy (ISO 17123-3:2001)	5"
Dual-axis compensator / Collimation compensation	Dual-axis liquid tilt sensor, working range: ±6' (±111mgon) / Collimation compensation available
Distance measurement
Laser output *1	Reflectorless mode: Class 3R / Prism / sheet mode: Class 1
Measuring range (under average conditions*2)
Reflectorless*3	0.3 to 500m(1.0 to 1,640ft.)
Reflective sheet4/5	RS90N-K: 1.3 to 500m (4.3 to 1,640ft.) , RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.)
Mini prisms	CP01: 1.3 to 2,500m (8,200ft.), OR1PA: 1.3 to 500m (1,640ft.)
One AP prism	1.3 to 4,000m (4.3 to 13,120ft.) / Under good conditions*6: 5,000m (16,400ft.)
Three AP prisms	to 5,000m (16,400ft.) / Under good conditions*6: to 6,000m (19,680ft.)
Display resolution	Fine/Rapid: 0.001m / 0.01ft. / 1/8in. Tracking: 0.01m / 0.1ft. / 1/2in.
Accuracy (ISO 17123-4:2001)(D=measuring distance in mm)
Reflectorless	(3 + 2ppm x D) mm*7
Reflective sheet	(3 + 2ppm x D) mm
AP/CP prism	(2 + 2ppm x D) mm
Measuring time*7	Fine: 0.9s (initial 1.7s), Rapid: 0.7s (initial 1.4s), Tracking: 0.3s (initial 1.4s)
Interface and Data management
Display / Keyboard	Graphic LCD, 192 x 80 dots, backlight, contrast adjustment / Alphanumeric keyboard / 25 keys with backlight
Control panel location*8	On both faces
Trigger key	On right instrument support
Data storage
Internal memory	Approx. 10,000 points
Plug-in memory device	USB flash memory (max. 8GB)
Interface	Serial RS-232C, USB2.0 (Type A, for USB flash memory)
Blue Tooth modem (factory option)*9	Blue Tooth Class 1, Ver.2.1+EDR, Operating range: up to 300m (980ft.)*10
General
Laser-pointer*11	Coaxial red laser using EDM beam
Guide light*11	Green LED (524nm) and Red LED (626nm),
	Operating range: 1.3 to 150m (4.3 to 490ft.)*2
Levels
Graphic	6' (inner circle)
Circular level	10' / 2mm
Optical plummet	Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
Laser plummet (option)	Red laser diode (635nm±10nm), Beam accuracy: ≤1.0mm*1.3m, Class 2 laser product
Dust and water protection	IP66 (IEC 60529:2001)
Operating temperature*12	-20 to +50ºC (-4 to +122ºF)*2
Size with handle*8	Contorol panel on both faces: W191 x D181 x H348mm (W7.5 x D7.1 x H13.7in.)
	Control panel on one face: W191 x D174 x H348mm (W7.5 x D6.9 x H13.7in.)
Weight with handle and battery	Approx. 5.6kg (12.3 lb.)
Power supply
Battery
BDC70 detachable battery	Li-ion rechargeable battery
Operating time (20ºC)
BDC70	Approx. 36 hours (single distance measurement every 30 seconds)
External battery (option)	BDC60: approx. 44 hours, BDC61: approx. 89 hours (single distance measurement eve
