Product Description

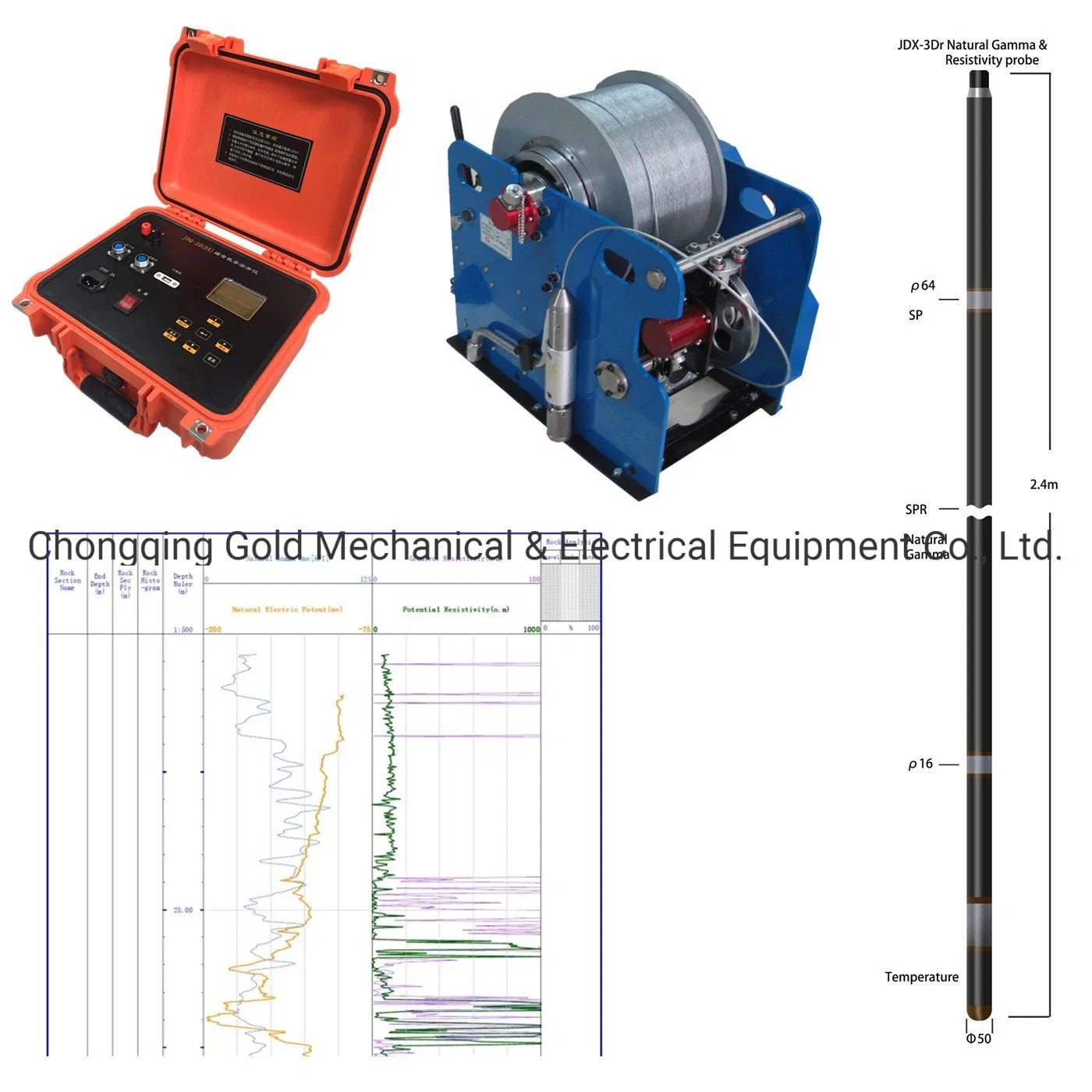

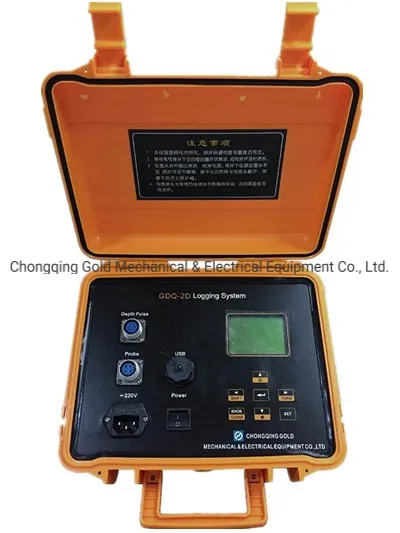

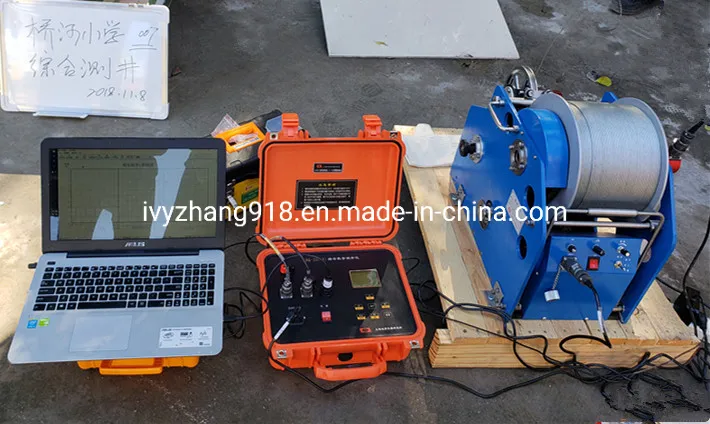

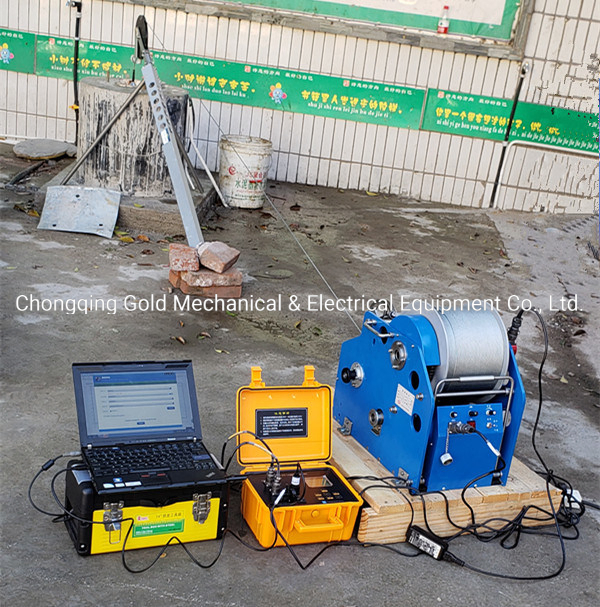

300m, 500m, 1000m Borehole Gamma Logger, Resistivity Borehole Log,Downhole Caliper Logging, Groundwater Logging, SP Water Well Logging System

It is used in casing, uncasing borehole and other type borehkole. To test different physical parameters: density, resistivity, sonic, caliper, inclination and ect.

Application:
1.Borehole aquifer thickness
2.Permeability and porosity estimates
3.Borehole fluid characterization
4. Borehole liquid flow rates
5. Casing integrity and well screen location
6. Shale and clay content in well
7. Mineralized zone characterization
8. Coal borehole density and orientation

300m, 500m, 1000m Borehole Gamma Logger, Resistivity Borehole Logging, Downhole Caliper Logging, Groundwater Logging, Water Well Logging System

300m, 500m, 1000m Borehole Gamma Logger, Resistivity Borehole Logging, Downhole Caliper Logging, Groundwater Logging, Water Well Logging System

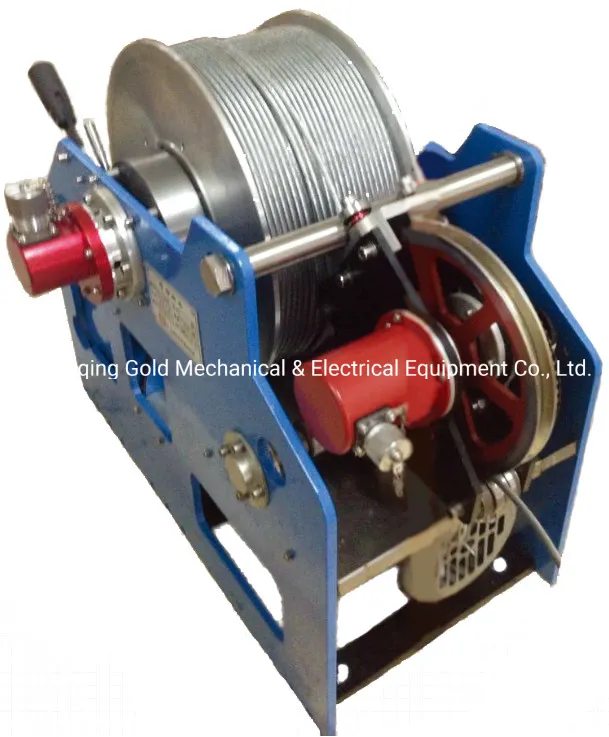

Borehole geophysical logging winch
Depth from 100m to 3000m depth
Armor cable diameter: 1/8", 3/16"
Cable drum and the level wind
Optional motor drive and controller
Speed controller provides accurate speed control
4-conductor slip ring

300m, 500m, 1000m Borehole Gamma Logger, Resistivity Borehole Logging, Downhole Caliper Logging, Groundwater Logging, Water Well Logging System

Parameters	3000m frequency control winch	2000m frequency control winch	1000m frequency control winch	300m winch	500m winch
Type	GD-3000	GD-2000	GD-1000	GD-300	GD-500
Dimensions	940×800×720	920×680×700	710×620×670	560×490×360	540×400×380
Weight	150 kg	120 kg	110 kg	25 kg	18 kg
Motor Power	2.2 kw	1.5 kw	1.1 kw	manual	manual
Pulse Number	1 circle per 4000	1 circle per 4000	1 circle per 4000
Reelable Length	3100 M	2200 M	1200 M	360 M	550 M
Reelable Length	3100 M	2200 M	1200 M	360 M	370 (Φ7mm rubber cable)
Cable core	4core	4core	4core	4core	4core

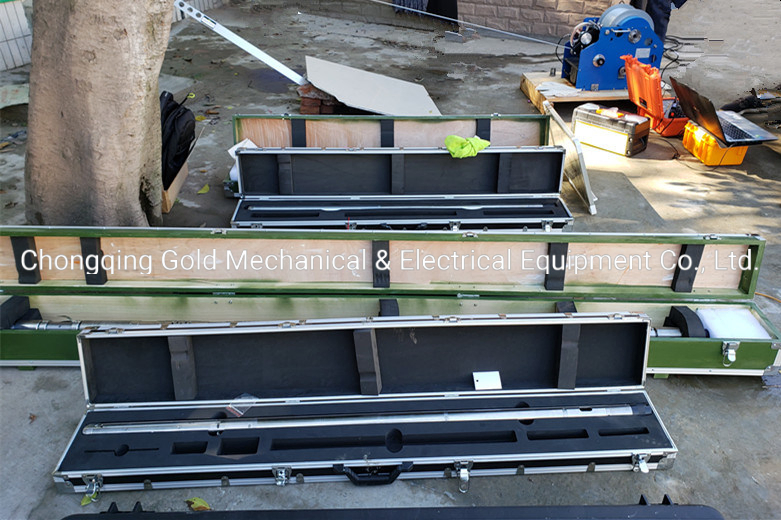

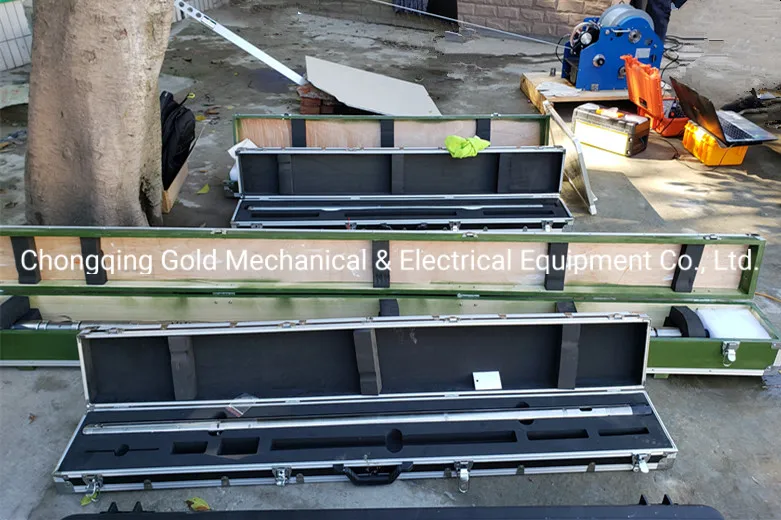

Probe Name	Usage
Combined Sidewall Probe	Double-spaced compensated density (DsCD), Natural Gamma, Three direction laterolog, Caliper and Spontaneous Potential
Combined Density Probe	Double-spaced compensated density (DsCD), Natural Gamma, Three direction laterolog and Spontaneous Potential
Combined Acoustic Wave Probe	SP, sound velocity, acoustic amplitude
Combined Natural Gamma probe	Magnetic locator, natural gamma
Temperature & Liquid Resistivity Combined probe	Well temperature, liquid resistivity
SP, Inclination, Natural Gamma Combined probe	SP, inclination, natural gamma
Digital Inclination Probe	Inclination
Magnetic Susceptibility Probe	Seeking for magnetic iron ores
Three-Lateral Direction Resistivity Laterolog Probe	Determines the resistivity of rock strata.
Caliper Probe	Check the integrity of well and provide additional information
Flow Probe	Liquid flow
Natural Gamma Probe	Nature gamma
Conventional Resistivity Log Probe	SP, NR, and LR
Soft-Elctrode Probe	SP, NR, LR and IP
