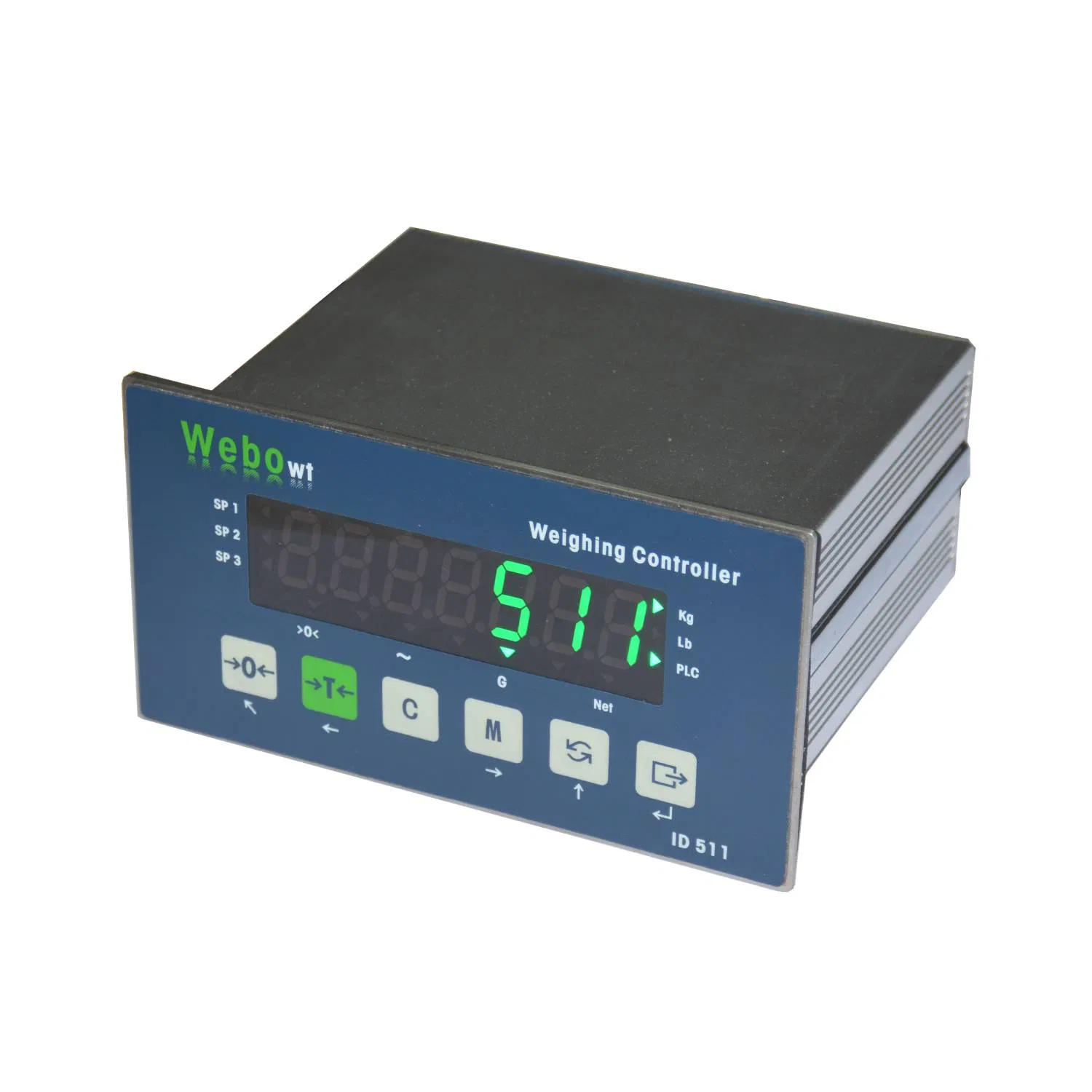

China Digital Scale Indicator, 7-Bit LED Digits Display Control Panel

Product Description

ID511 Weighing indicator (controller)

7-bit LED digits display
Standard with two serial ports:RS232+RS232/485 or RS232+RS485+LAN Port(EtherNet)
Serial Port support MODBUS-RTU
LAN Port support TCP,UDP,MODBUS-TCP
Field BUS Option
PROFIBUS-DP
EtherNet/IP
CC-link
4-20mA
EtherCAT
I/O Option IN x8 / OC OUT x12
IN x8 / Relay OUT x12
Support 150,000d display division,6000e W&M Approved
Remote Configuration and Calibration via PROFIBUS-DP,PROFINET,EtherNet/IP,
MODBUS-RTU,MODBUS-TCP,EtherCAT
2-speed target control
Eight simple target comparison
Multi-calibration
Test weight calibration
No test weight calibration

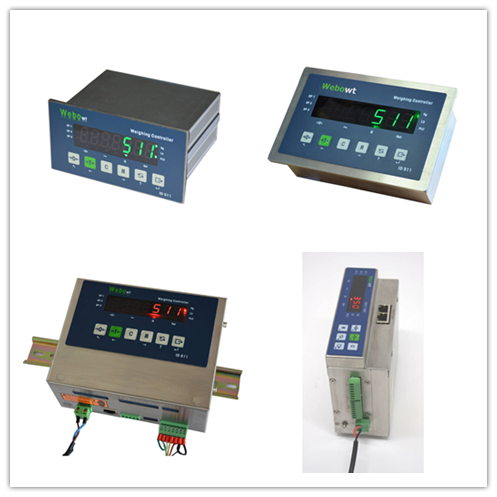

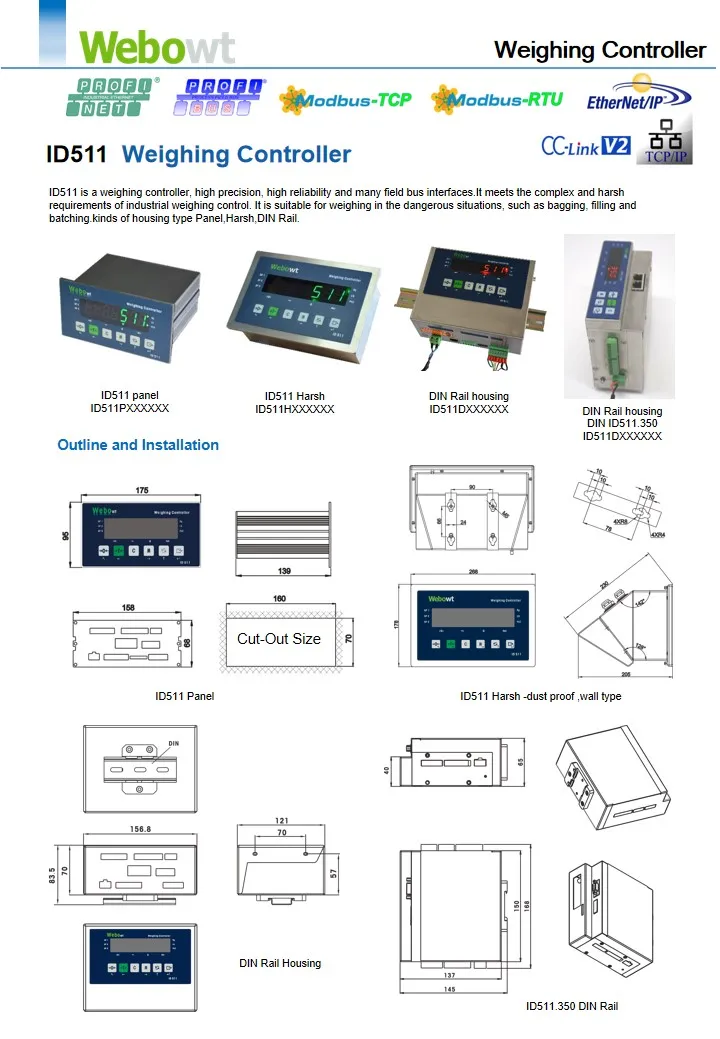

Housing
Panel mount - IP65
Harsh - IP68
DIN Rail
Digital Scale Indicator, 7-Bit LED Digits Display Control Panel

Digital Scale Indicator, 7-Bit LED Digits Display Control Panel

Product NO.	Configuration	Configuration Description
ID511 Panel - 110VAC/220VAC
8511001	ID511PC0000A	ID511,Panel,two serial ports(RS232+RS232/485),MODBUS-RTU, basic APP,7-digit green LED display, 110/220VAC no power cable
8511002	ID511PE0000A	ID511,Panel,two serial ports(RS232+RS485),100M LAN port, MODBUS-RTU,MODBUS-TCP,TCP,UDP, Basic APP,7-digit green LED display,110/220VAC no power cable
8511003	ID511PC1000A	ID511,Panel,two serial port(RS232+RS232/485),IN x 8/OC output x 12,MODBUS-RTU,basic APP,7-digit green LED display,110/220VAC no power cable
8511004	ID511PC2000A	ID511,Panel,two serial port(RS232+RS232/485),IN×8/Relay output ×12,MODBUS-RTU,basic APP, 7-digit green LED display,110/220VACno power cable
8511005	ID511PC0P00A	ID511,Panel,two serial port(RS232+RS232/485),MODBUS-RTU, PROFIBUS-DP, basic APP,7-digit green LED display,110/220VAC no power cable
8511006	ID511PC0A00A	ID511,Panel,two serial port(RS232+RS232/485),MODBUS-RTU,4-20mAx1, basic APP,7-digit green LED display,110/220VAC no power cable
8511007	ID511PC0B00A	ID511,Panel,two serial port(RS232+RS232/485),MODBUS-RTU,4-20mAx2,basic APP,7-digit green LED display,110/220VAC no power cable
8511008	ID511PC0C00A	ID511,Panel,two serial port(RS232+RS232/485),MODBUS-RTU, CC-LINK,basic APP,7-digit green LED display,110/220VAC no power cable
8511009	ID511PC0E00A	ID511,Panel,two serial port(RS232+RS232/485),MODBUS-RTU,EtherNet/IP,basic APP,7-digit green LED display,110/220VAC no power cable
851100A	ID511PC0F00A	ID511,Panel,two serial port(RS232+RS232/485),MODBUS-RTU,PROFINET,basic APP,7-digit green LED display,110/220VAC no power cable
851102Z	ID511PE1000A	ID511,Panel,two serial port(RS232+RS485),100M LAN port,IN×8/OC output ×12,MODBUS-RTU,TCP, UDP,MODBUS-TCP,basic APP,7-digit green LED display,110/220VAC no power cable
8511030	ID511PE2000A	ID511,Panel,two serial port(RS232+RS485)and 100M LAN port,IN×8/Relay output ×12,MODBUS-RTU,TCP,UDP,MODBUS-TCP,basic APP,7-digit green LED display,110/220VAC no power cable
85110D5	ID511PC0T00A	ID511,Panel,two serial port(RS232+RS232/485),MODBUS-RTU,EtherCAT,basic APP,7-digit green LED display,110/220VAC no power cable
