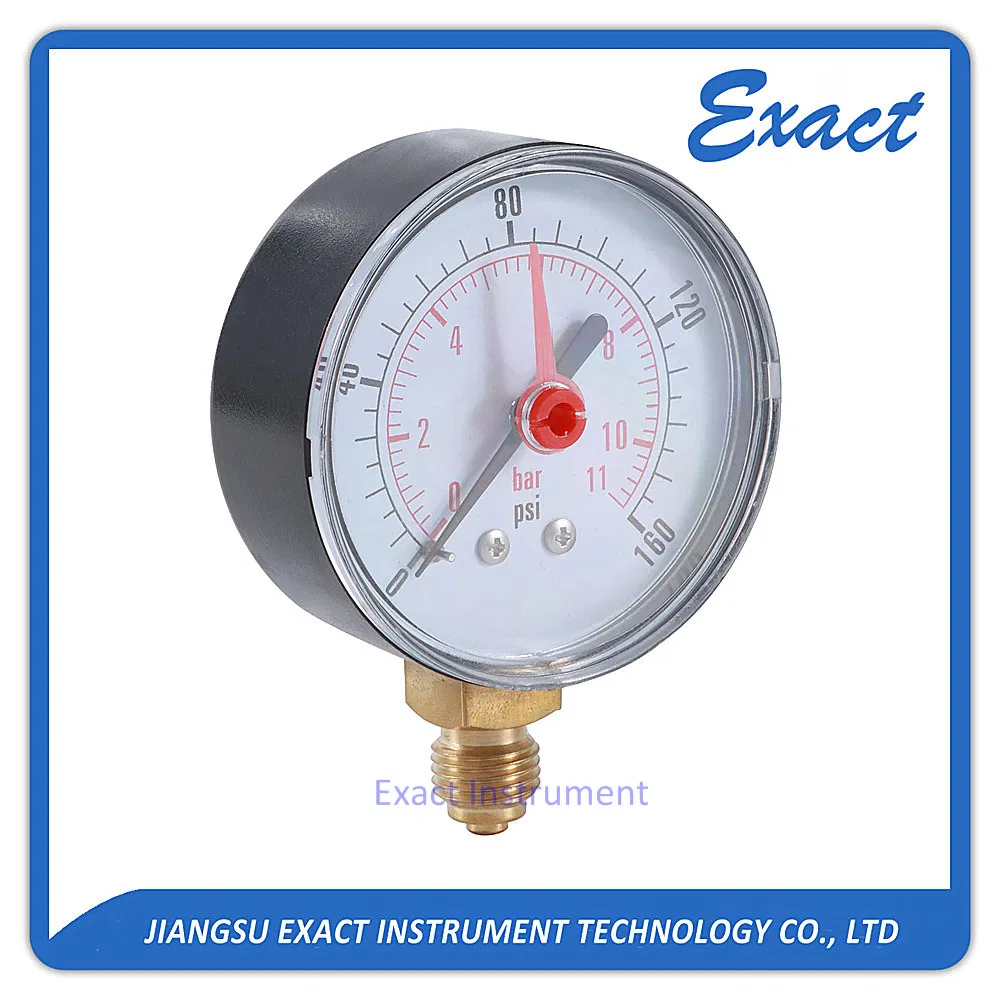

Red-Pointer Manometer-Double Pointer Manometer-Manometer with Alerm
Red-pointer manometer with alert Product DescriptionNormal Size:1.5"(40mm),2.0"(50mm),2.5"(63mm),3"(75mm),4"(100mm),6"(150mm).Pressure Range:-1Bar(-30"Hg)-0-1000Bar(15000Psi)Accuracy:±1%,±1.6%,±2.5%Operating temperature:-40°......
Send Inquiry
Product Description
Product Description
| Normal Size: | 1.5"(40mm),2.0"(50mm),2.5"(63mm), |
| 3"(75mm),4"(100mm),6"(150mm). | |
| Pressure Range: | -1Bar(-30"Hg)-0-1000Bar(15000Psi) |
| Accuracy: | ±1%,±1.6%,±2.5% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type | |
| ≥100Bar: Helical Type | |
| Connection: | Brass or Stainless steel |
| Movement: | Brass or Stainless steel |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| PT(BSPT,ZG),BSP(G,PF),NPT etc. | |
| Liquid: | Glycerin or Silicone |
| Gaskets Filling cap: | Nitrile or Silica gel |

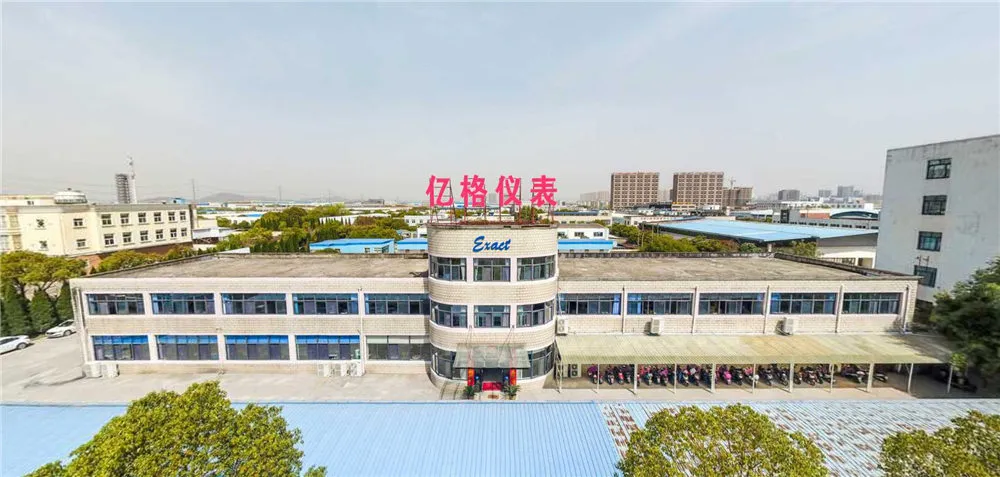

Company Information

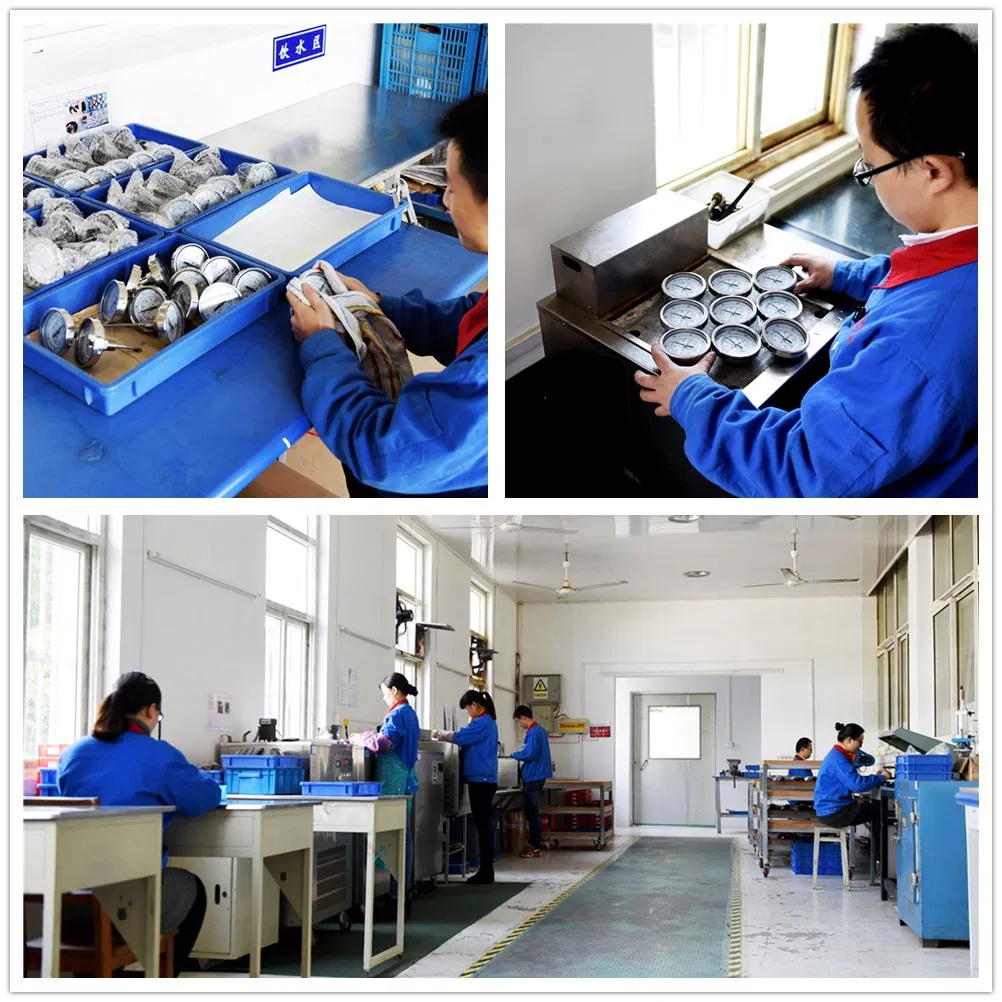

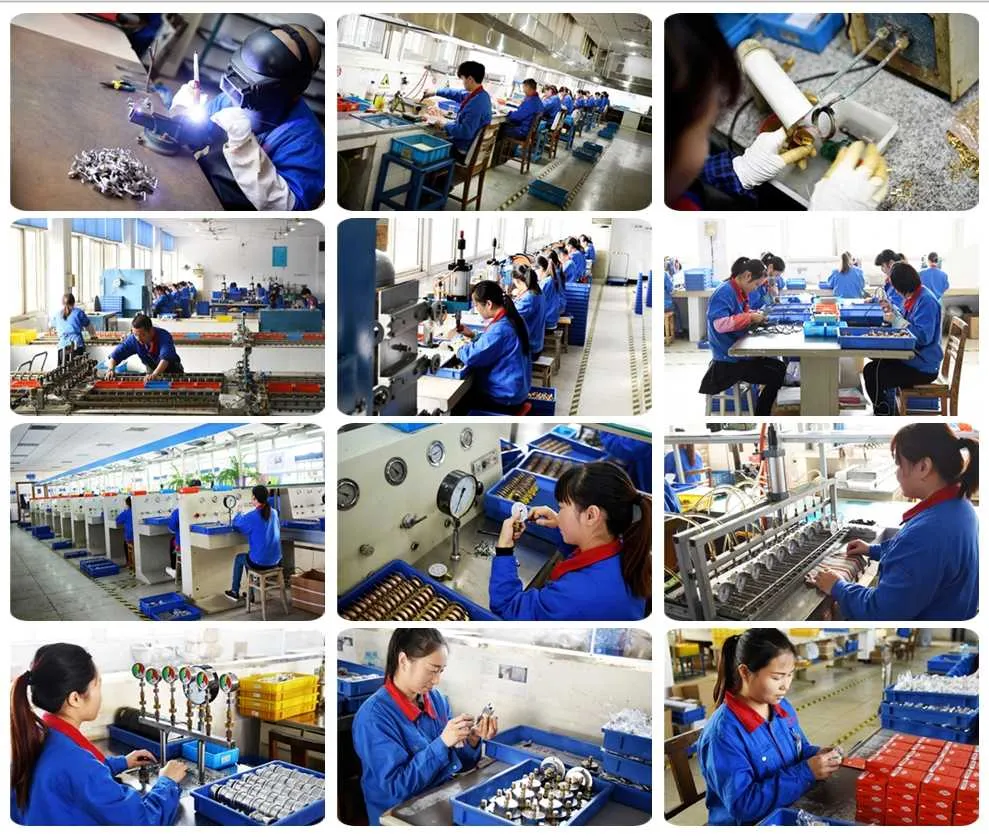

Production Flow

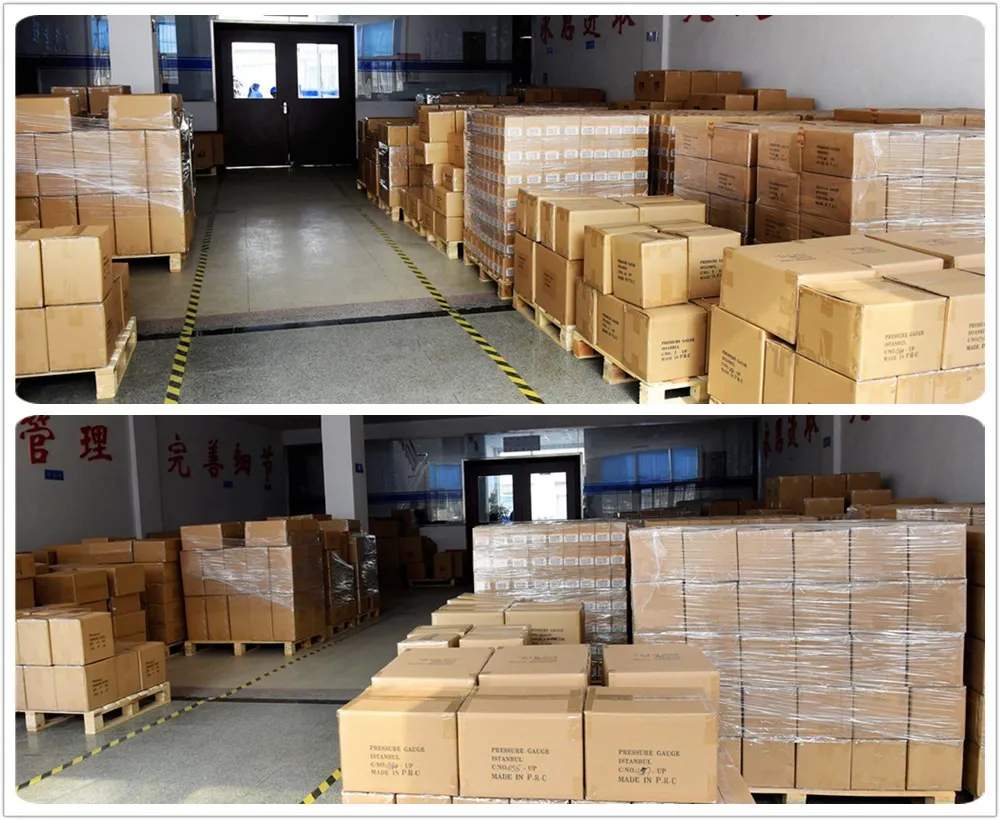

Packing and shipping
CERTIFICATE:
FAQ:
Q:Can you supply the OEM services?
A:No problem.
Q:Are you able to develop customized solutions for non-standard applications?
A:Yes, we can. We have a professional R&D team.
Q:Do you have technical drawings or data sheets of your instruments?
A:Yes, we can supply upon customer's request, please contact with the sales.
Q:What about the MOQ?
A:The minimum order amount is $1000USD. Small order can be negotiation.
Q:How about the delivery time?
A:The delivery time is 7-45days depends on the products type and quantity.
Q:Do you check the products before shipment?
A:Our products all are 100% inspection before shipment.
Q:What is the warranty policy?
A: 1Year warranty.
