Product Description

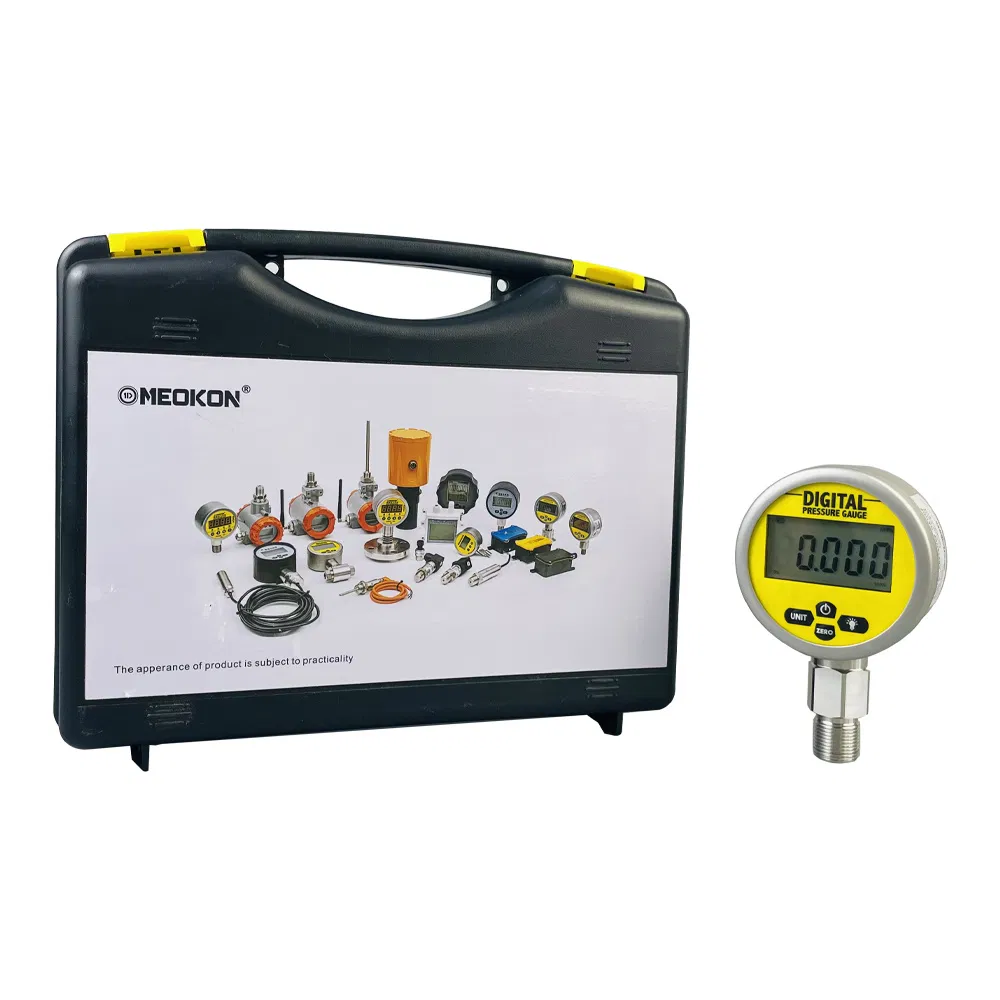

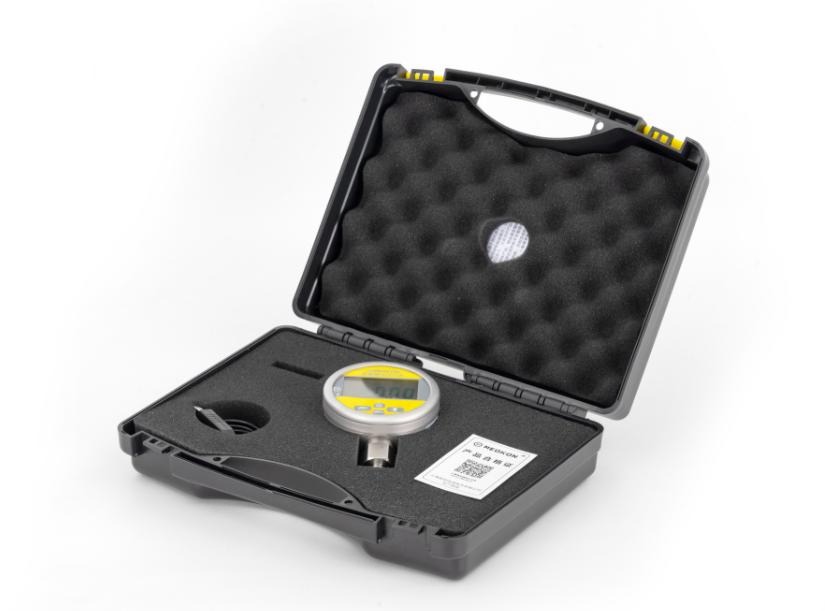

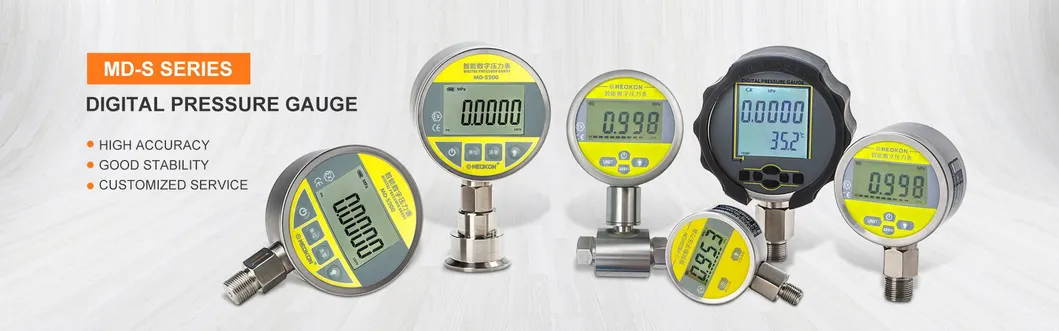

Meokon Digital Pressure Gauge with Data Logger USB

This gauge is a high-precision and intelligent digital pressure gauge with data record. It has a high- precision sensor and displays the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, record time setting, On/off record units, low voltage alarm. And it is convenient to install and easy to operate.

This product adopts SS304 materials of case and connector. It can be used to measure gas, liquid, oil and other non-corrosive mediums. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.

Technical Characteristics:

80mm diameter, 304 stainless steel case

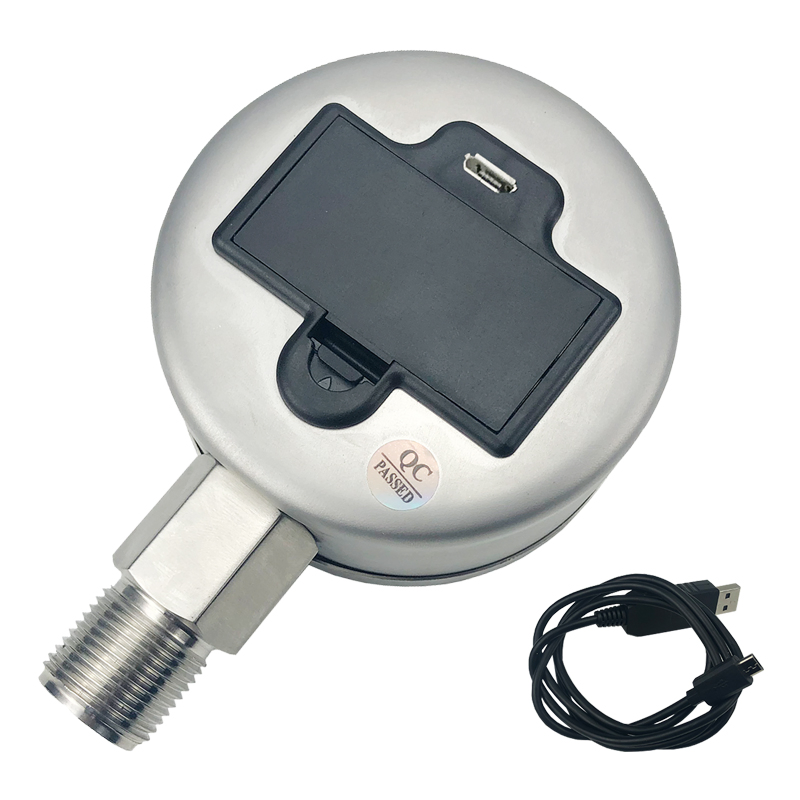

Timing acquisition, USB output, support data export
With data software, special data communication line
It can store up to 10,000 pcs data, It displays range when switch on
With pressure display bar, indicating the current pressure percentage, One-button zero-clearing function

Application:

Machinery and electronic industry
Instruments
Pressure laboratory
Mechanical engineering automation
Replacement of pointer pressure gauge

Specification:

Range	Micropressure Range : (0~6…10…25) kPa
	Medium Range : (0.4…0.6…25…60) MPa
	Ultra High Range : (100…160)MPa
	Compound Range : (-5~5…10…-100…1000) kPa
	Absolute Pressure : (0~100…250…1000) kPa
	Differential Pressure : (0~10…25…40…60…100…250…400…600) kPa ; (0~1…1.6) MPa
Acc.	0.2%FS (Special Customized)
Acc.	0.4%FS (20 ± 5ºC)
Overland pressure	<=10MPa 200% ; >10MPa 150%
Backlight Color	White
Dial Size	80mm
Long-term Stability	Typical: ±0.2%FS/year
Storage Tempreature	-20~80ºC
Testing Tempreature	-5~40ºC (customized)
Relative humidity	<85%
Power Supply	2AA batteries
Sampling Frequency	5 Times / sec
Measurement Medium	Gas , liquid,oil etc
Pressure Connector	M20*1.5 ,G1/4, NPT1/4 (other are custonized)
Connector Material	304SS
Electric Connection	Anti-emi design, conform to EN61326 standard
Date Memory	Permanent EEPROM
Function	On/off,zero clearing,units changing,backlignt,calibration
IP Rating	IP50 (IP54 with protection sleeve)
