Manufacturers Supply High-Precision Precision Digital Pressure Gauges

Product Description

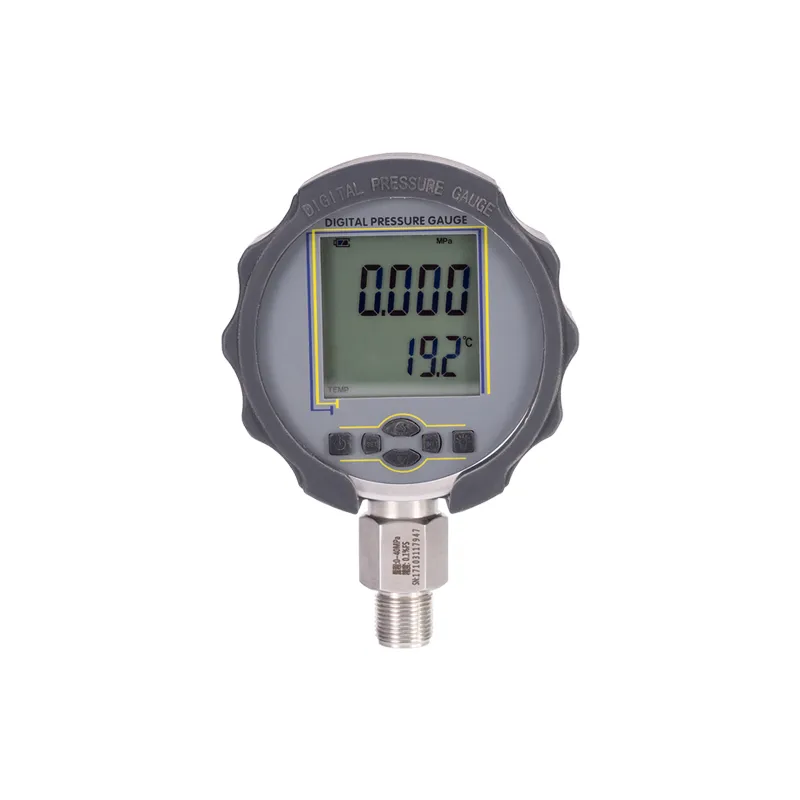

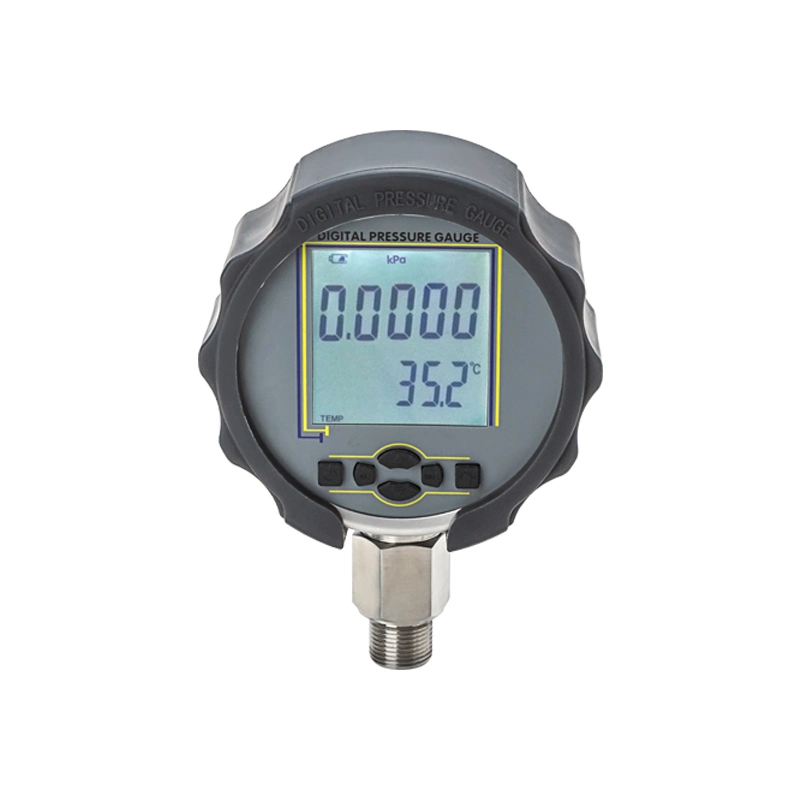

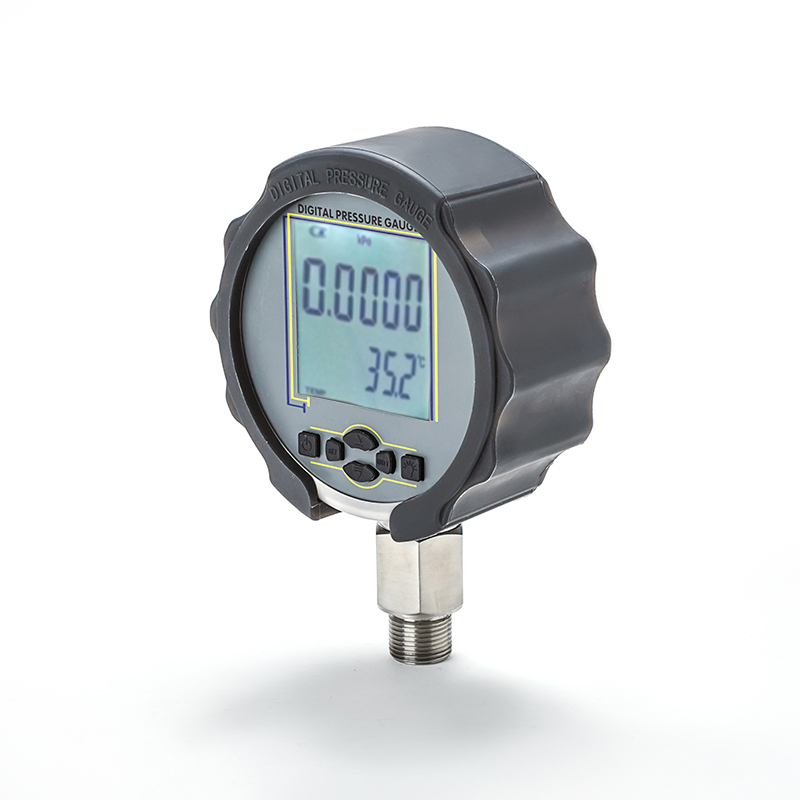

MD-S210 High Precision Digital Pressure Gauge
Technical Characteristics:

55x 55 mm large-size LCD screen.
105mm diameter,304 SS shell
5digits display, main & sub- screen dual screen design
10 units are available: MPa/kPa/psi/BAR/Pa/mBAR/mmHg/mH2O/Torr/Kgf/cm

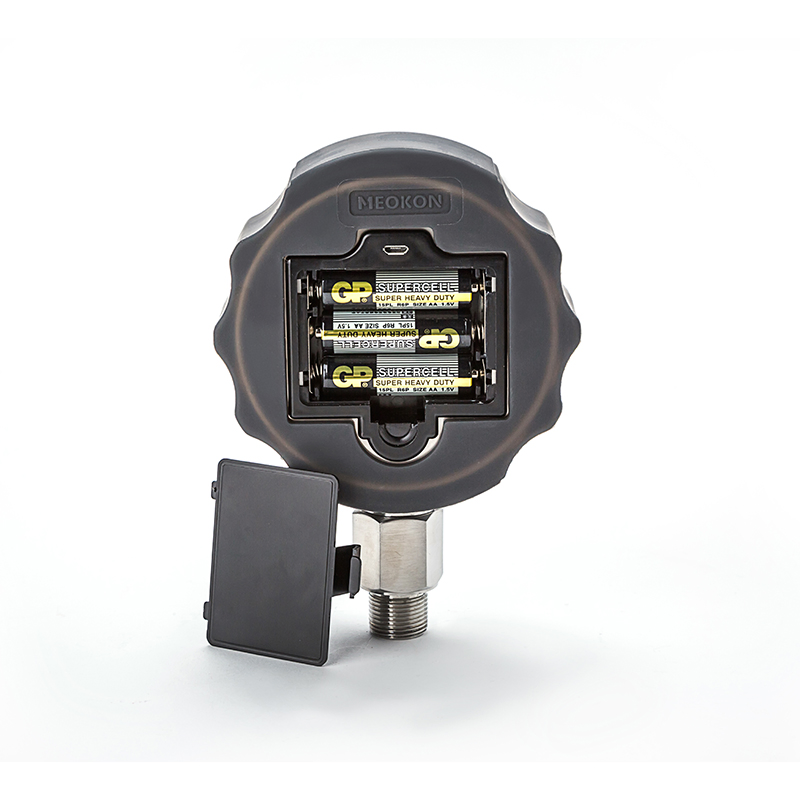

low power design,3 AA batteries and can lasts up to 3600 hours
Product certificate: CE, Explosion Certificate Exib IICT4

Manufacturers Supply High-Precision Precision Digital Pressure Gauges

Range	Micropressure:(1...2.5...25)kPa
	Low Pressure:(40...60...250)kPa
	Medium Voltage:(0.4...0.6...4)MPa
	High Pressure:(6...10...25)MPa
	MPa Ultra High Pressure:(40...60...160)MPa
	Compound Range: (-2.5~2.5...5...-100~1000)kPa
	Absolute Pressure:(0~10...25...1000)kPa
	Differential Pressure: (0~10...25...40...60...100...250...400...600)kPa (0~1.1.6)MPa
Overload Capacity	150%(>10MPa) ;200%(≤10MPa)
Backlight Color	White
Dial Size	105mm
Acc.	0.05%FS
Acc.	0.1%FS
Output Signal	RS 485
Long-term Stability	Typical:±0.1%FS/year
Operation Temperature	-5~40ºC
CompensationTemperature	0~40ºC
Electric Protection	Anti Electro Magnetic Interference
Sampling Frequency	1-10 times/second
Measurement Medium	Gas or liquid compatible with 316 stainless steel
Pressure Connection	M20*1.5 G1/4 NPT1/4( customized)
Connection Material	304SS
Shell Material	304SS
Function	Power On/Off Backlight Clear Unit Switch Extreme Value Display
Power Supply	3 AA batteries/USB supply
Accessory	Carrying case / USB power cord Product Certificate
Product Certificate	CE Explosion Certificate(Exib IICT4)
IP rating	IP50(IP54with protection sleeve)

PS:Accuracy 0.5% FS will be higher than 0.1% FS.

Pressure gauge difference, Price will be difference.

With RS485 Output, Cost need extra USD20/piece.

Mechanical electronics industry
Supporting equipment of instrument
Pressure Laboratory
Construction mech automation
Replace the pointer precision pressure gauge and can be used as a standard pressure gauge for verifying pressure transmitters & ordinary pressure gauges
