Madical Equipment Test Pressure Gauge Logger with Batteries

Product Description

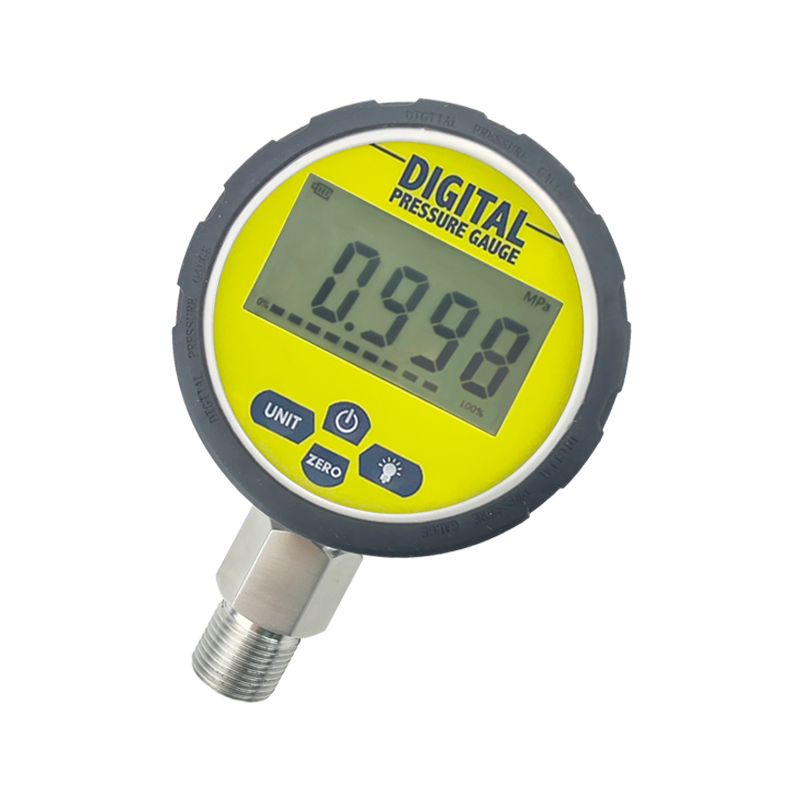

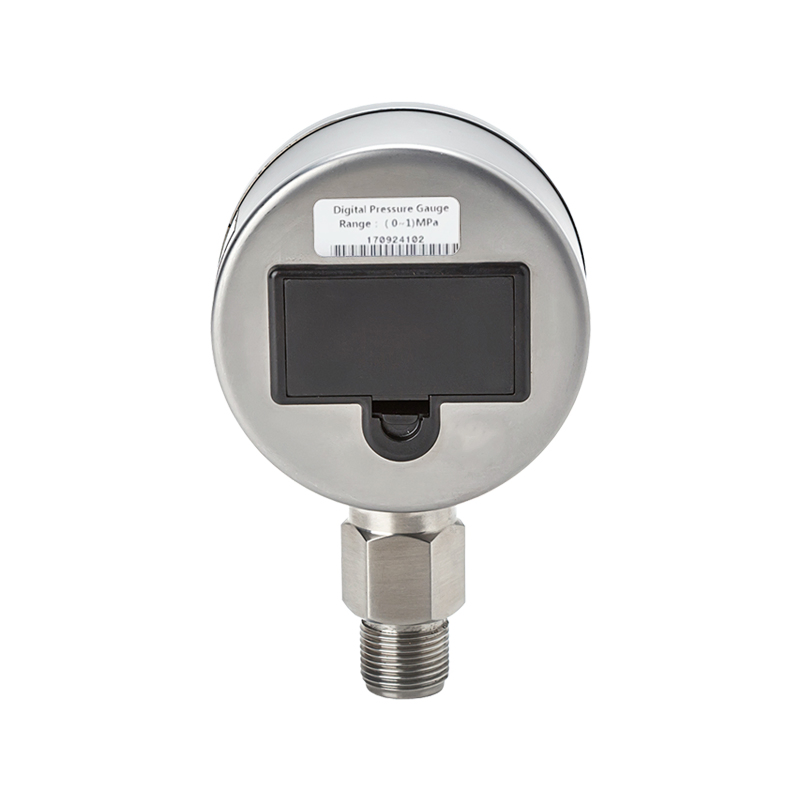

MD-S280 is a high-precision and intelligent digital pressure gauge. It has a high- precision sensor and display the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, units, low voltage alarm. And it is convenient to install and easy to operate.

The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.

Technical Characteristics:

4 digit LCD showing the pressure accurately in real time
Different pressure units to choose, zero clearing, backlight, on/off
Battery-powered, low-power design keeping working for 12 months
High-precision pressure sensor, the highest accuracy to 0.4%FS,0.2%FS
Pressure percentage display

Application:

Machinery and electronic industry
Supporting equipment of instruments
Pressure laboratory
Mechanical engineering automation
Replacement of pointer pressure gauge

Specification:

Range	Micropressure:(6…10…25)kPa
	Medium Voltage:(0.4...0.6…4)MPa
	High Pressure : (6…10…25) MPa
	Ultra High Pressure:(40…60…160)MPa
	Compound Range:(-5~5…10…-100~1000) kPa
	Absolute pressure:(0~100…250…1000)kPa
	Differential Pressure:(0~10…25…40…60…100…250…400…600)kPa (0~1…1.6) MPa
Acc.	0.2%FS , 0.4%FS

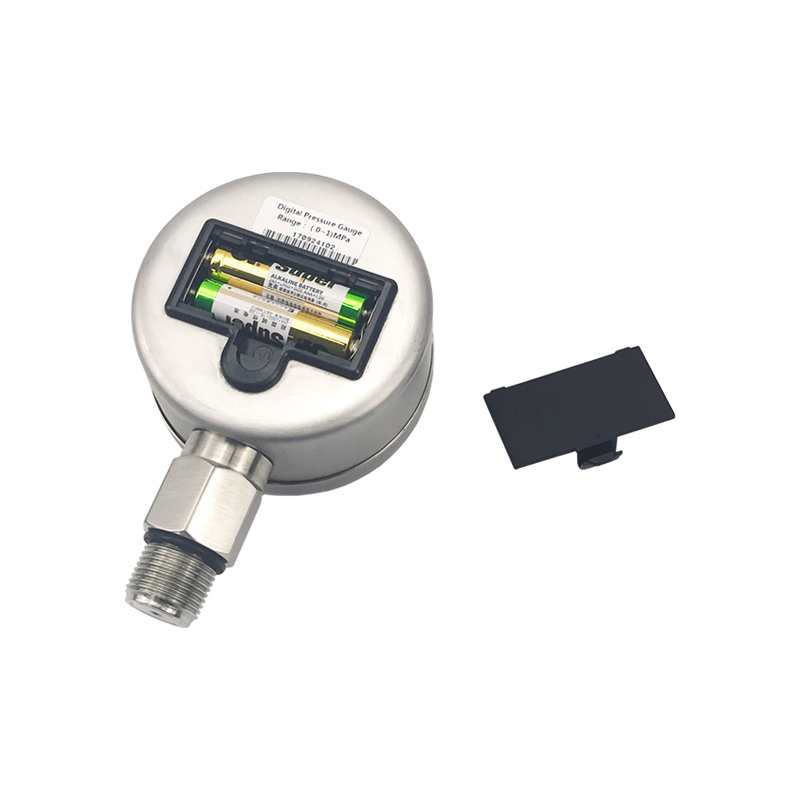

Supply	2 AAA batteries
Overload Capacity	150%
Backlight Color	White
Dial Size	80mm
Long-term Stabilily	Typical::±0.2%FS/year
Operating Temperature	-5~40ºC
Compensation Temperature	0~40ºC
Electric Protection	En61326
Sampling Frequency	5 Times/sec
Measurement Medium	Gas,Liquid
Connection	G1/2 , G1/4 , NPT1/2 , NPT1/4
Connection Material	304SS
IP Rating	IP50 ( IP54 with protection sleeve)
