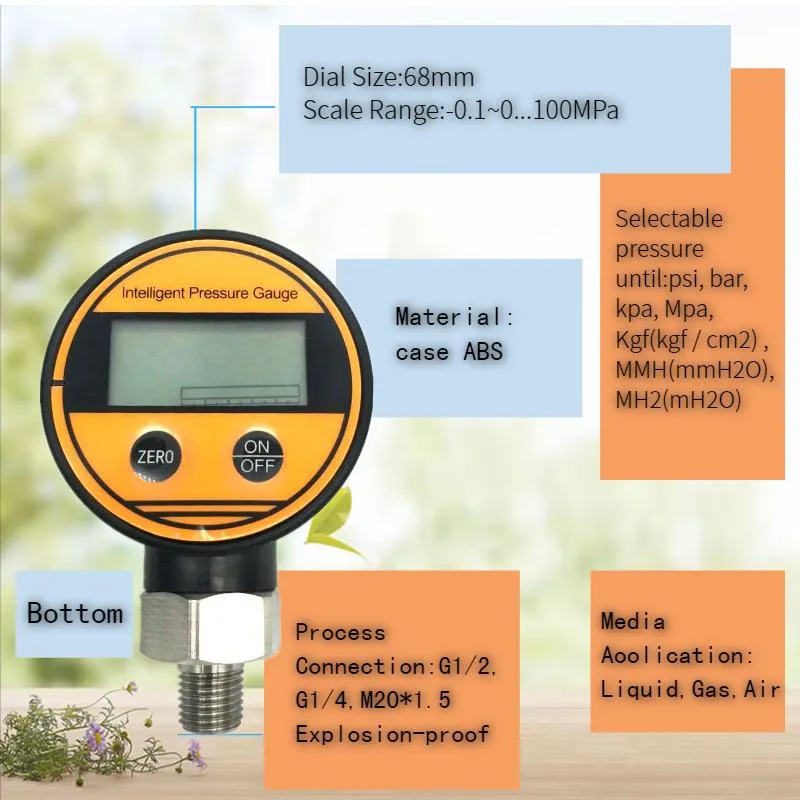

9VDC LCD Liquid Gas Differential Pressure Gauge with CE ( QDB108 )

Product Description

Product description:

QDB108 is battery-powered with good vibration resistance. It is used in gas and liquid medium, suitable for portable equipment, metrical instrument and pipeline indoor.

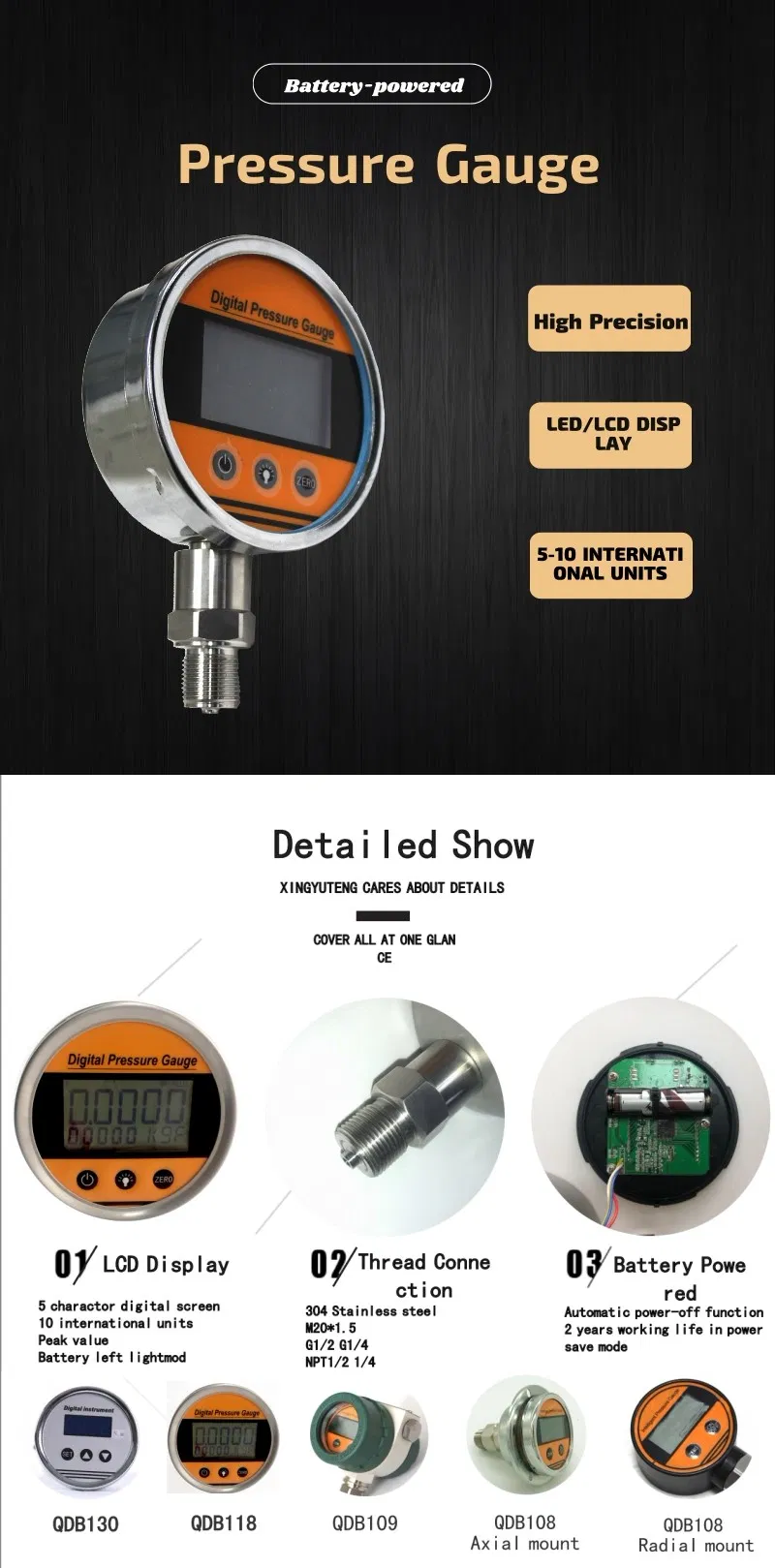

Features:

1.Large-screen LCD display with high resolution, no indication error

2.Automatically record the maximum pressure value during the measurement

3.Pressure percentage dynamic demonstration (progress strip demonstration)

4.5 engineering units: psi, bar, kpa, Mpa, kg/cm2

5.1-15minutes auto power-off function

6.Battery life over 2 years in power-saving mode, 2,000 hours continuous operation.

7.Parameter correction, correct zero and error at site

8.Sampling rate: 4 times/second

9.Applicable to gases and liquids compatible with stainless steel

Product parameters:

SPECIFICATIONS FOR QDB108 PRESSURE GAUGE
PRESSURE RANGE	-0.1~0...100MPa
ACCURACY	0.2%F.S/0.5%F.S
STABILITY	≤0.1%/year
POWER SUPPLY	9VDC
WORK TEMPERATURE	-20°C~70°C
OVERLOAD CAPACITY	150%F.S
RELATIVE HUMIDITY	0~90%
PROTECTION LEVEL/IP RATING	IP65
MEDIA	Gas/Liquid/Oil /Diving/oxygen
Sensor	Diffused sillcon

SELECTIONS FOR QDB108 PRESSURE GAUGE

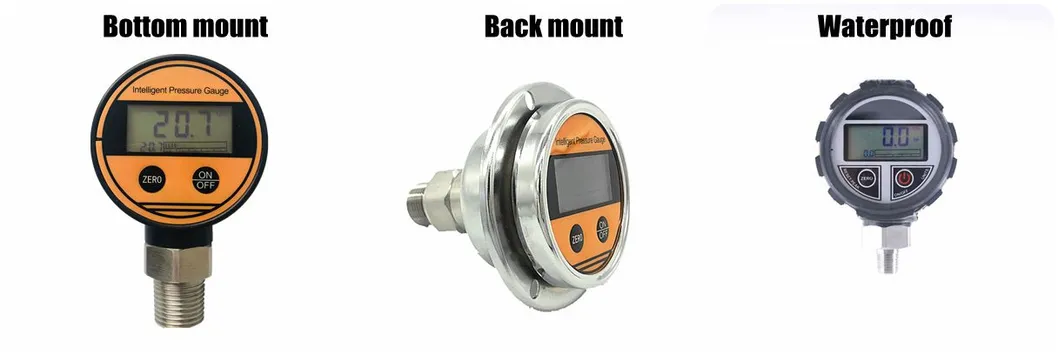

Model	QDB108	J	radial direction

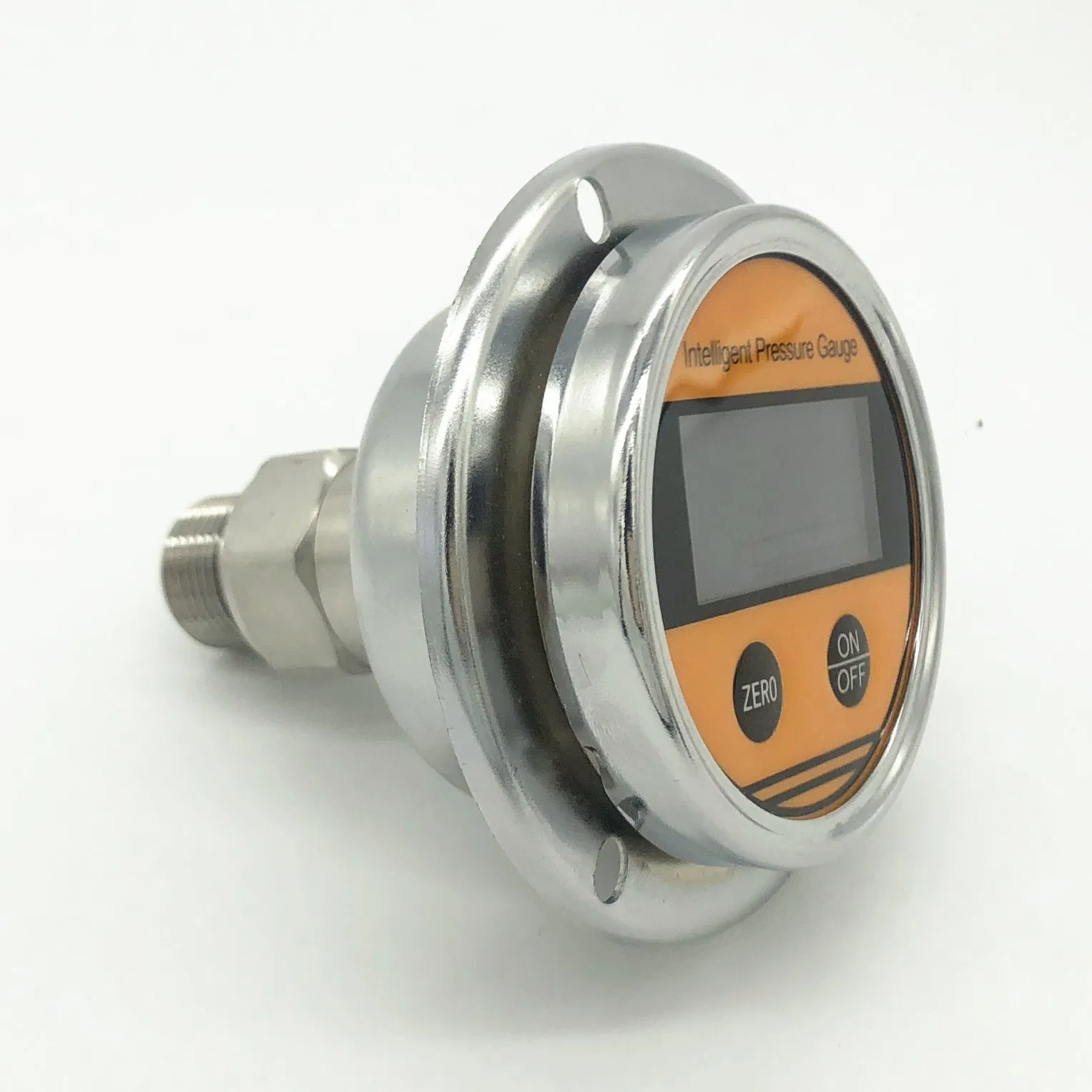

		Z	axial direction
Thread connection	G14	G1/4
	G12	G1/2
	M20	M20*1.5
Measuring Range		Please contact us for customization

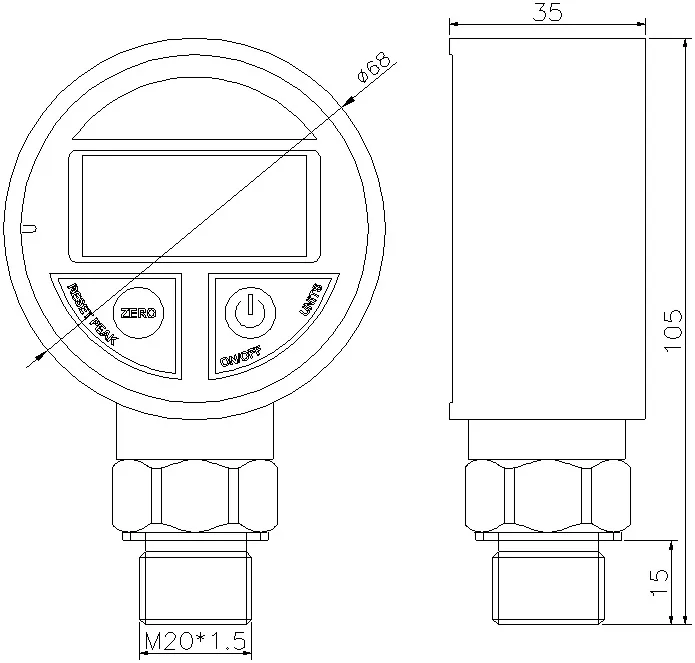

Dimension:

9VDC LCD Liquid Gas Differential Pressure Gauge with CE (QDB108)
