What Is a V-shape Glass Thermometer and Why Is It Essential for Accurate Temperature Measurement?
2026-03-09
Temperature measurement is a critical part of many industries, from laboratories and manufacturing to environmental monitoring and food processing. Among the various types of thermometers available, the V-shape Glass Thermometer stands out for its precision, durability, and easy readability. Designed with a distinctive V-shaped structure, this thermometer improves viewing angles and measurement accuracy, making it widely used in industrial equipment, pipelines, tanks, and HVAC systems. Companies such as Ningbo Rising Instrument Co.,Ltd. All Rights Reserved. specialize in producing high-quality thermometers that combine traditional glass measurement technology with modern industrial design to ensure reliable performance in demanding environments.
What Is a V-shape Glass Thermometer?

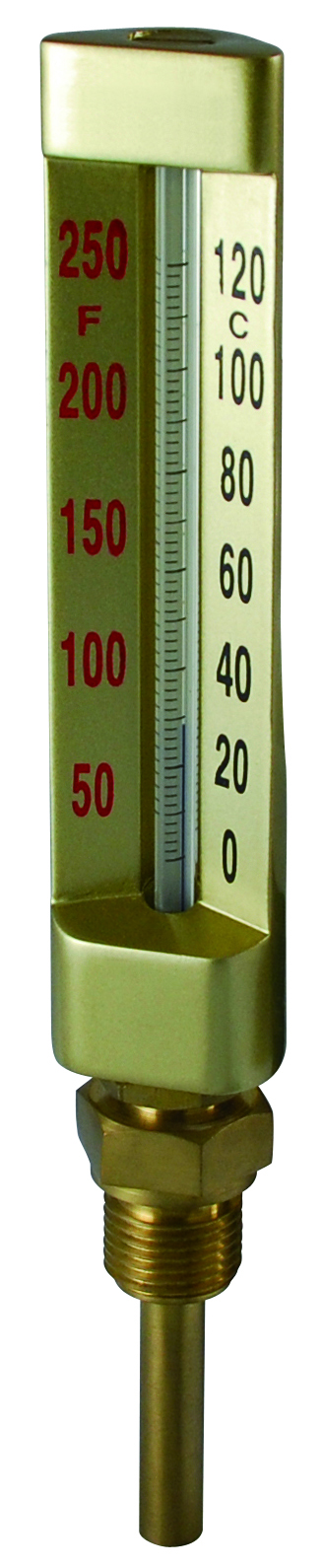

A V-shape Glass Thermometer is a temperature measuring instrument that uses a liquid-in-glass mechanism and features a V-shaped scale plate or housing. The unique V design allows users to read temperature values from multiple angles, reducing reading errors and improving convenience in industrial settings where equipment may be mounted in tight or elevated spaces.
The thermometer usually contains a glass capillary tube filled with a temperature-sensitive liquid such as mercury or colored alcohol. As the temperature changes, the liquid expands or contracts, moving along the calibrated scale to display the current temperature.
Key Structural Components
| Component | Description | Function |
|---|---|---|
| Glass Capillary Tube | Thin sealed glass tube | Contains the measuring liquid |
| Temperature Liquid | Mercury or colored alcohol | Expands and contracts with temperature |
| V-shaped Scale Plate | Metal or plastic scale holder | Improves visibility and reading accuracy |
| Protective Case | Aluminum or stainless steel | Protects internal glass structure |
| Sensor Bulb | Bottom sensing element | Detects environmental temperature |
Why Choose a V-shape Glass Thermometer?
Compared with standard straight thermometers, the V-shape Glass Thermometer offers several practical advantages.
1. Enhanced Readability
The V-shaped scale allows users to clearly see the temperature reading from different viewing angles. This is especially helpful when the thermometer is installed on pipelines or machines.
2. High Accuracy
Glass thermometers rely on a simple physical expansion principle, which provides consistent and stable measurement without electronic interference.
3. Long Service Life
With no electronic components, these thermometers are resistant to electromagnetic interference and can function reliably for many years.
4. Low Maintenance
Unlike digital sensors that require calibration and power supply, a glass thermometer typically requires little maintenance.
V-shape Glass Thermometer vs Traditional Straight Thermometer
The difference between a V-shaped design and a standard straight thermometer becomes clear in practical applications.
| Feature | V-shape Glass Thermometer | Traditional Glass Thermometer |
|---|---|---|
| Viewing Angle | Wide and easy to read | Limited viewing angle |
| Installation | Suitable for industrial pipelines | Mostly used for simple environments |
| Durability | Often protected with metal casing | Usually more fragile |
| Application Range | Industrial, HVAC, machinery | Laboratory or household |
Because of these advantages, many industrial systems prefer V-shape Glass Thermometers for continuous monitoring.
Common Applications of V-shape Glass Thermometers
The versatility of the V-shape Glass Thermometer makes it suitable for a wide range of industries.
Industrial Equipment
Used to monitor temperatures in boilers, compressors, and hydraulic systems.
HVAC Systems
Installed in heating and cooling pipelines to ensure stable operation.
Food Processing
Helps maintain safe temperature ranges during production and storage.
Chemical Industry
Provides reliable temperature monitoring during chemical reactions.
Water Treatment Systems
Ensures water temperature remains within operational standards.
Typical Temperature Ranges
-
-30°C to 50°C – Environmental monitoring
-
0°C to 120°C – HVAC and pipeline systems
-
0°C to 200°C – Industrial machinery
-
High-temperature models – Specialized industrial applications
Importance of Accurate Temperature Monitoring
Temperature control plays a vital role in maintaining operational safety and product quality. A small temperature deviation in industrial equipment can lead to mechanical failure, reduced efficiency, or product defects.
Using a V-shape Glass Thermometer helps operators quickly identify abnormal temperature changes and take corrective action. Its clear display and reliable mechanism make it a trusted tool for long-term monitoring.
Benefits for Industrial Operations
-
Improves system safety
-
Enhances operational efficiency
-
Reduces equipment damage risk
-
Provides reliable long-term measurements
-
Minimizes maintenance costs
Why Choose Ningbo Rising Instrument Co.,Ltd.?
Ningbo Rising Instrument Co.,Ltd. All Rights Reserved. is committed to manufacturing high-quality temperature measurement instruments. With advanced production technology and strict quality control, the company provides reliable V-shape Glass Thermometers designed for global industrial applications.
Key advantages include:
-
High-precision manufacturing standards
-
Durable materials and protective structures
-
Wide temperature measurement ranges
-
Customization options for different industries
-
Competitive pricing with professional service
Each thermometer is designed to deliver accurate readings, long service life, and dependable performance even in harsh working conditions.
Conclusion
The V-shape Glass Thermometer remains an essential instrument for accurate and reliable temperature measurement in many industries. Its innovative V-shaped design improves readability, while the classic liquid-in-glass principle ensures stable and precise monitoring without electronic complexity. Whether used in HVAC systems, industrial machinery, or chemical processing, this thermometer provides dependable performance and long-term value.
If you are looking for professional temperature measurement solutions, Ningbo Rising Instrument Co.,Ltd. All Rights Reserved. offers high-quality products tailored to your needs. Contact us today to learn more about our V-shape glass thermometers and discover how our instruments can support your industrial applications.
