Is a VCR 1/4 Female Face Seal Swivel Compatible with High-Purity Gas Lines

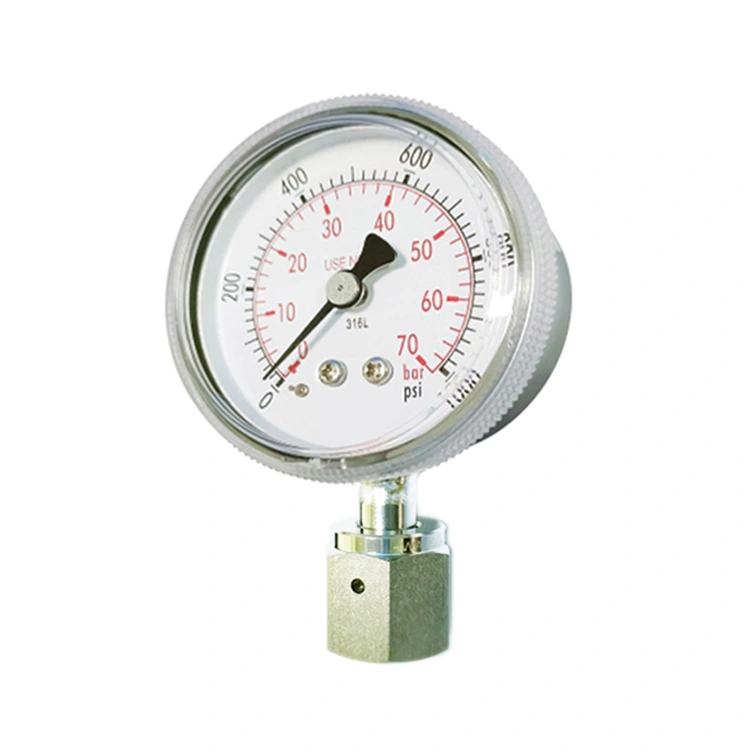

When specifying components for ultra-high-purity (UHP) gas distribution systems—whether in semiconductor fabrication, pharmaceutical manufacturing, or analytical laboratories—the choice of fittings directly impacts product yield, safety, and operational uptime. Among the most debated options is the VCR 1/4 Female Face Seal Swivel, a fitting that combines rotational flexibility with metal-to-metal sealing. The short answer is yes, but only under strict conditions regarding material grade, assembly procedure, and gasket selection. This article examines the engineering rationale, compatibility criteria, and best practices to ensure your VCR 1/4 Female Face Seal Swivel performs reliably in high-purity service, with application insights from CSHERUN, a supplier known for precision-machined fluid system components.

Why the Face Seal Design Matters for Gas Purity

The defining feature of any VCR-style fitting is the face seal interface, where a captured gasket (typically nickel, copper, or silver-plated) deforms under controlled torque to create a leak-tight metal barrier. The swivel variant adds a female-threaded nut that rotates independently of the tube stub, allowing orientation adjustment without twisting the tubing—critical for pre-bent lines or cramped panel layouts.

For high-purity gases (e.g., silane, nitrogen, argon, hydrogen, or chlorine), the VCR 1/4 Female Face Seal Swivel offers three inherent advantages:

However, compatibility is not automatic. The following table summarizes critical selection parameters verified by CSHERUN during factory qualification testing:

When these criteria are met, the VCR 1/4 Female Face Seal Swivel not only matches but often exceeds the performance of welded connections in applications requiring periodic maintenance or component swaps.

Critical Installation Factors That Determine Compatibility

Even with premium materials, improper installation remains the primary cause of contamination and leakage. For a VCR 1/4 Female Face Seal Swivel in UHP lines, three rules are non-negotiable:

1. Torque control – Use a calibrated torque wrench with documented values (typically 30–35 N·m for 1/4" size, depending on gasket material). Under-torquing causes leaks; over-torquing extrudes the gasket and generates metallic debris.

2. Gasket single-use policy – Never reuse a compressed gasket. The deformation that creates the seal also work-hardens the material, reducing its ability to conform during a second tightening cycle.

3. Assembly cleanliness – Assemble in a Class 100/ISO 5 environment or use purge caps until the moment of connection. Even fingerprint oils can decompose and contaminate downstream analyzers.

CSHERUN recommends verifying each VCR 1/4 Female Face Seal Swivel with a helium mass spectrometer leak check after installation, with acceptance threshold set at < 1×10⁻⁹ atm·cc/sec for semiconductor-grade processes.

Frequently Asked Questions About the VCR 1/4 Female Face Seal Swivel in UHP Service

Q1: Can a VCR 1/4 Female Face Seal Swivel be used for both inert and reactive gases like silane or chlorine?

A1: Yes, but with specific gasket and material precautions. For inert gases (N₂, Ar, He), a standard nickel gasket in a 316L body is sufficient. For reactive or corrosive gases such as silane (SiH₄), chlorine (Cl₂), or hydrogen chloride (HCl), choose a silver-plated nickel gasket to reduce galling and improve seal compliance under thermal cycling. Additionally, the body must be 316L VIM-VAR grade with a certified oxide layer (passivation) to resist pitting. CSHERUN offers customized VCR 1/4 Female Face Seal Swivel assemblies with full gas-specific compatibility documentation, including chemical resistance matrices and recommended torque adjustments for each gas family.

Q2: How does the swivel feature affect particle generation compared to a non-swivel VCR fitting?

A2: The swivel mechanism introduces an additional bearing interface between the female nut and the tube stub. In low-quality fittings, this can generate microscopic wear particles from thread galling. However, in a precision‑machined VCR 1/4 Female Face Seal Swivel from suppliers like CSHERUN, the nut is coated with a dry-film lubricant (MoS₂ or similar) and the thread tolerances are held to ≤ 0.002 inches. Independent particle-count tests show that a properly lubricated swivel produces fewer than 50 particles ≥ 0.1 µm per 100 actuations—well within SEMI F57-0301 guidelines. The rotational freedom actually reduces particle risk by eliminating tube bending stress, which can otherwise cause micro-cracking in welded zones.

Q3: What is the maximum operating temperature for a VCR 1/4 Female Face Seal Swivel in a hydrogen purge line?

A3: For continuous service in hydrogen (which has high thermal conductivity and can cause hydrogen embrittlement in certain alloys), the maximum recommended temperature is 350°C (662°F) for a 316L body with a nickel gasket. Above this threshold, consider a 316H or Alloy 625 body, but note that the swivel nut’s thread clearance may change due to differential thermal expansion. For intermittent bake-out cycles up to 400°C, the VCR 1/4 Female Face Seal Swivel can be used, provided the system is pressurized with inert gas during heating to prevent surface oxidation. CSHERUN provides thermal cycle test data for each batch, validating performance from -196°C (cryogenic) to +450°C upon request.

Real-World Performance and Industry Standards

Leading industry specifications—including SEMI F70, ASTM F1387, and ISO 21358—all accept face-seal swivel fittings for UHP gas distribution, provided the fitting manufacturer maintains documented quality systems. CSHERUN goes beyond these standards by performing 100% helium leak testing and surface roughness verification on every VCR 1/4 Female Face Seal Swivel before shipment. In side-by-side field trials at a major foundry, fittings from CSHERUN demonstrated moisture pickup below 10 ppb after 500 thermal cycles, compared to 50–80 ppb for commercial-grade alternatives.

For system designers, the swivel feature also simplifies maintenance access. A fixed VCR fitting may require dismantling multiple supports to break a joint, whereas the VCR 1/4 Female Face Seal Swivel allows the nut to rotate, so the tube stub stays oriented—reducing downtime by an average of 40% in modular gas cabinets, according to internal CSHERUN application data.

Final Verdict: Compatible, But Only With Rigorous Specification

To conclude, the VCR 1/4 Female Face Seal Swivel is fully compatible with high-purity gas lines when sourced from a qualified manufacturer, assembled with correct torque and cleanroom protocols, and paired with the appropriate gasket metallurgy. It is not a “one-size-fits-all” solution—but for engineers who demand both leak integrity and assembly flexibility, it remains an industry-proven choice. Always request material certifications, surface finish reports, and lot-specific leak test records. Avoid generic or uncertified copies, as they introduce unpredictable contamination risks that can ruin expensive process batches.
