How the Positive Displacement Flowmeter works

A positive displacement (PD) flowmeter is a highly accurate device used to measure the volumetric flow rate of liquids. Unlike many other types of flowmeters, which infer flow rate based on velocity or pressure changes, a PD flowmeter works by directly capturing a fixed volume of fluid and counting the number of times this volume is filled and discharged. This mechanical method of measurement provides reliable readings, especially for viscous fluids or those flowing at low rates.

Basic Operating Principle

The core principle behind a positive displacement flowmeter is quite simple: as liquid flows through the meter, it moves mechanical components within a chamber. These components are designed to isolate and transport a known quantity of fluid from the inlet to the outlet. Every cycle of this mechanical movement represents a specific volume of fluid. By counting the number of cycles over time, the flowmeter calculates the total volume of liquid that has passed through.

Common Designs

Several mechanical designs are used in PD flowmeters, including:

Gear Meters: Consist of intermeshing gears that rotate as fluid flows, each rotation representing a fixed volume.

Rotary Vane Meters: Use a rotor with sliding vanes that trap liquid in compartments, rotating with flow.

Oval Gear Meters: Feature two oval gears that rotate in opposite directions, each rotation delivering a precise volume.

Piston Meters: Use reciprocating pistons to draw in and push out liquid in fixed quantities.

Each design is suited to specific types of fluids and flow conditions but shares the same volumetric principle.

Applications and Advantages

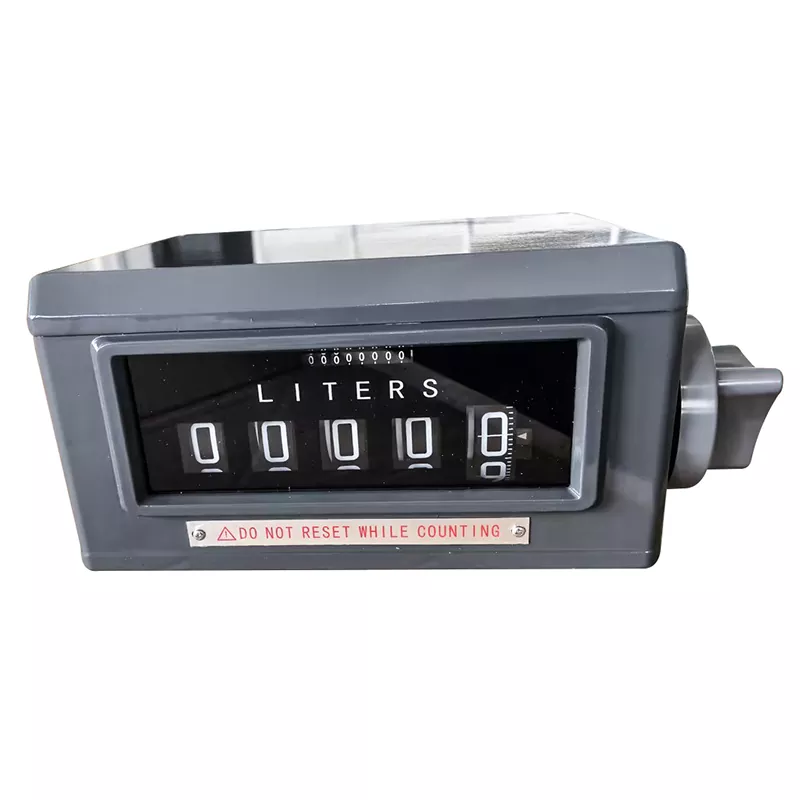

Positive displacement flowmeters are especially useful in applications requiring high accuracy and repeatability. They are widely used in the chemical, food and beverage, pharmaceutical, and oil and gas industries. One key advantage is that they do not require a power supply to operate mechanically, although electronic readouts are commonly added for monitoring.

Another major benefit is their effectiveness in measuring the flow of highly viscous or non-conductive fluids, which often present challenges for other meter types such as electromagnetic or ultrasonic flowmeters.

Limitations

Despite their precision, PD flowmeters do have some limitations. They are not ideal for fluids containing large solid particles, which can damage the internal mechanisms. Additionally, they tend to be bulkier and require more maintenance compared to non-mechanical flowmeters due to moving parts that wear over time.

Conclusion

Positive displacement flowmeters provide a direct and dependable method for measuring volumetric flow. Their mechanical accuracy, especially for viscous or low-flow liquids, makes them invaluable in many industrial settings. While not suited to every application, their reliability and precision continue to ensure their relevance in modern flow measurement technologies.
