How the Positive Displacement Flowmeter's Communication Technology Enables Data Transmission

Positive Displacement (PD) flowmeters are widely used for measuring the volumetric flow of fluids, particularly in industries such as oil and gas, chemical processing, and water management. Beyond their mechanical precision, modern PD flowmeters are increasingly integrated with advanced communication technologies that enable real-time data transmission. These communication capabilities play a crucial role in optimizing operations, enhancing monitoring accuracy, and supporting remote diagnostics and control. This essay explores how PD flowmeters utilize communication technologies to enable seamless data transmission.

Integration of Digital Sensors and Electronics

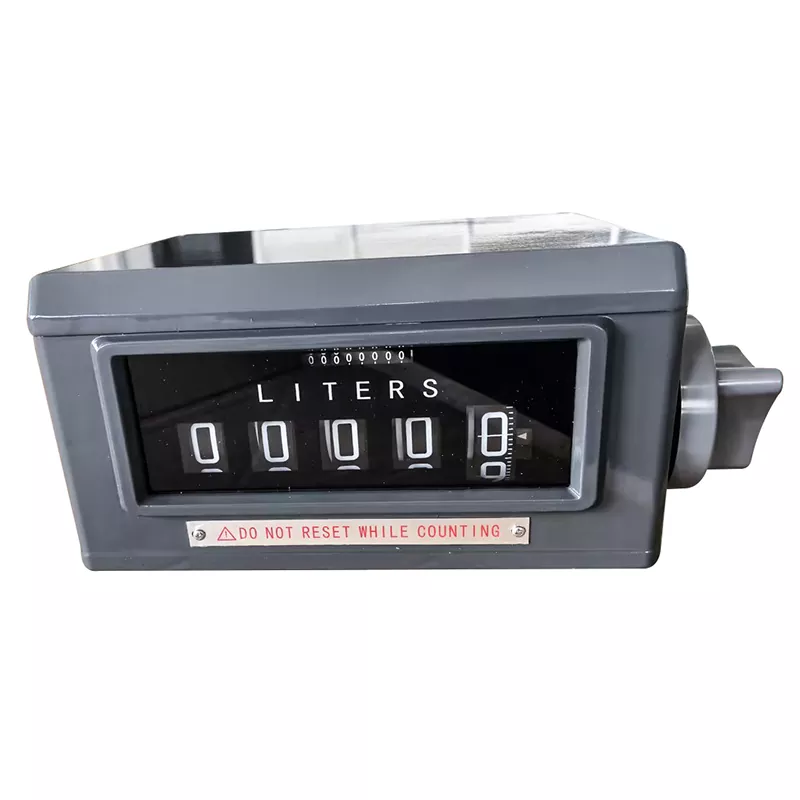

Traditional PD flowmeters relied on mechanical counters or manual readings. However, modern PD flowmeters are equipped with digital sensors and onboard electronics that convert mechanical motion into electrical signals. These sensors detect the movement of internal components—such as gears or pistons—and generate digital pulses proportional to the volume of fluid passing through the meter. This digital signal forms the basis of the data that is transmitted for monitoring and analysis.

Communication Protocols and Interfaces

Once the flow data is digitized, it must be transmitted to control systems, data loggers, or remote monitoring platforms. This is where communication protocols come into play. Common communication interfaces used in PD flowmeters include:

4–20 mA analog signals: Although not a digital communication protocol, the 4–20 mA signal is widely used for transmitting flow data over long distances with high noise immunity.

HART (Highway Addressable Remote Transducer): HART protocol allows digital data to be superimposed on the 4–20 mA signal, enabling both analog and digital communication over a single pair of wires.

Modbus RTU/TCP: A popular open protocol used in industrial automation, Modbus enables devices to communicate via serial or Ethernet networks, transmitting detailed flow data in a standardized format.

Profibus, Foundation Fieldbus, and CANopen: These advanced protocols support complex device integration in distributed control systems, facilitating not just data transmission but also configuration and diagnostics.

Wireless Communication Technologies

In remote or hazardous environments, wireless communication technologies offer significant advantages. PD flowmeters can be equipped with wireless transmitters using technologies such as:

Bluetooth and Wi-Fi: Suitable for short-range communication, these allow technicians to access flowmeter data using mobile devices or portable computers.

LoRaWAN and NB-IoT: These low-power, wide-area network technologies are ideal for transmitting flow data over long distances with minimal energy consumption, making them suitable for smart city and agricultural applications.

Cellular (4G/5G) and Satellite: For highly remote locations, PD flowmeters can connect to cellular or satellite networks, ensuring real-time data availability regardless of location.

Data Transmission for Operational Efficiency

The primary purpose of enabling communication in PD flowmeters is to support efficient operations. Real-time data transmission allows for:

Remote Monitoring: Operators can observe flow conditions without being physically present, reducing labor costs and improving safety.

Predictive Maintenance: Continuous data streams help in identifying irregularities and scheduling maintenance before failures occur.

Data Logging and Analysis: Transmitted data can be logged and analyzed for long-term trends, aiding in system optimization and regulatory compliance.

Cybersecurity and Reliability Considerations

As with any connected device, data transmission in PD flowmeters raises concerns about security and reliability. To mitigate these risks, manufacturers implement encryption protocols, secure authentication methods, and redundancy in data paths. Additionally, rugged designs ensure that flowmeters maintain reliable communication in harsh industrial environments.

Conclusion

The communication technology integrated into modern Positive Displacement flowmeters transforms them from simple measuring devices into intelligent components of digital industrial ecosystems. By enabling efficient and secure data transmission through wired or wireless protocols, these flowmeters provide the real-time insights and remote access necessary for modern process automation and smart management systems. As communication technologies continue to evolve, PD flowmeters will play an even greater role in advancing industrial efficiency and connectivity.
