Does a Programmable Smart PLC Energy Meter Support Real-Time Power Quality Analysis (THD, PF, Frequency)

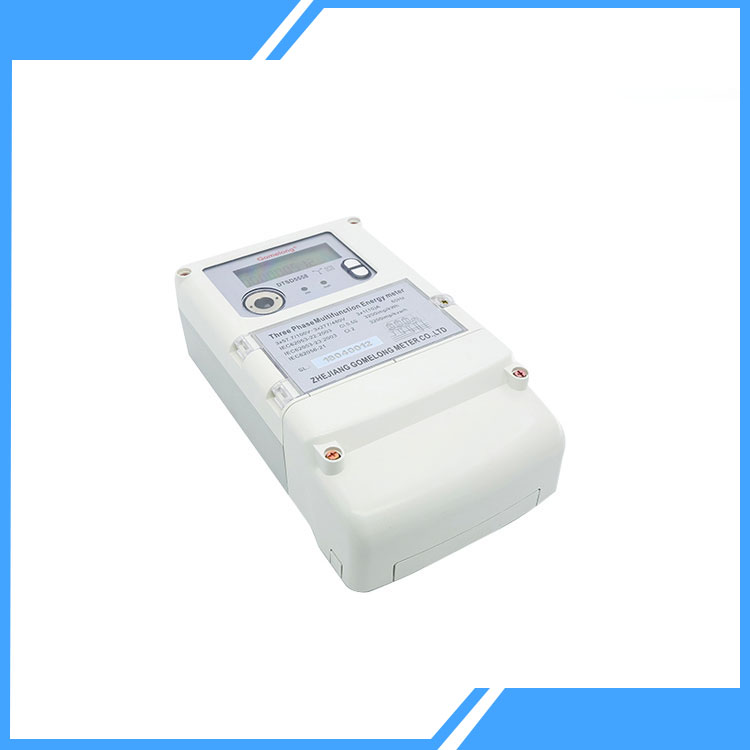

Modern electrical systems are no longer judged solely by total kilowatt-hours consumed. Facility managers, plant engineers, and energy consultants now demand instantaneous visibility into the health of their power networks. This is where the Programmable Smart PLC Energy Meter becomes indispensable. The short answer is yes—a properly specified Programmable Smart PLC Energy Meter does support real-time analysis of Total Harmonic Distortion (THD), Power Factor (PF), and Frequency. However, the depth, accuracy, and usability of that data vary significantly across brands. At Gomelong, we have engineered our Programmable Smart PLC Energy Meter series to not only capture these critical parameters but to interpret them in a way that drives immediate operational decisions.

The Three Pillars of Real-Time Power Quality

To understand the capability, we must first define what real-time analysis means for these three parameters:

• Total Harmonic Distortion (THD): Measures the distortion of the voltage or current waveform caused by non-linear loads (VFDs, rectifiers, UPS systems). A high THD (above 5-8%) leads to overheating transformers and nuisance tripping. A Programmable Smart PLC Energy Meter with real-time THD tracking alerts operators the moment harmonics cross predefined thresholds.

• Power Factor (PF): The ratio of real power to apparent power. Low PF (below 0.85) incurs penalty charges from utilities. Real-time PF monitoring allows dynamic capacitor bank switching—a feature fully supported by Gomelong devices through their programmable logic outputs.

• Frequency (Hz): Grid stability indicator. Deviations beyond ±0.5 Hz can damage sensitive rotating machinery. Real-time frequency data from the meter enables load-shedding logic within the PLC environment.

How Real-Time Analysis Works Internally

Unlike traditional meters that average values over 15-minute intervals, a true Programmable Smart PLC Energy Meter samples voltage and current at speeds of 128 to 256 samples per cycle. At 50/60 Hz, this equates to sub-millisecond response times. The internal DSP (Digital Signal Processor) calculates THD up to the 63rd harmonic, PF with 0.001 resolution, and frequency with 0.01 Hz accuracy. Gomelong takes this further by embedding the calculation engine directly into the PLC logic, meaning the meter does not just report data—it executes conditional commands based on that data without external software intervention.

Comparative Capabilities: Standard Meter vs. Programmable Smart PLC Meter

The following table illustrates why a Programmable Smart PLC Energy Meter outperforms conventional alternatives for power quality analysis:

Practical Implementation Scenarios

• Scenario 1: A stamping press with 12 VFDs causes voltage THD to spike from 3% to 9% during acceleration. The Gomelong Programmable Smart PLC Energy Meter detects this within 200ms and sends a Modbus command to reduce the press speed until harmonics drop below 6%, preventing transformer overheating.

• Scenario 2: A solar-plus-storage facility experiences PF fluctuations between 0.72 and 0.98 due to changing irradiance. The meter’s real-time PF data feeds into the PLC algorithm that switches capacitor steps automatically, maintaining PF above 0.95 and avoiding utility fines.

Frequently Asked Questions (FAQ)

Q1: What is the minimum sampling rate required for accurate THD analysis, and can a Programmable Smart PLC Energy Meter achieve it?
A1: For accurate THD analysis up to the 50th harmonic, the IEC 61000-4-7 standard recommends sampling at least 256 samples per cycle (12.8 kHz at 50 Hz). A standard meter sampling at 64 samples/cycle will miss higher-order harmonics. Gomelong designs its Programmable Smart PLC Energy Meter with a configurable sampling rate ranging from 128 to 512 samples/cycle, easily surpassing the minimum requirement. Moreover, the meter applies a Hann windowing function to reduce spectral leakage, ensuring that the reported THD values are within ±1% of reference-grade analyzers. For users concerned with inter-harmonics, the device also supports FFT (Fast Fourier Transform) output via the communication port, allowing external software to perform deeper analysis without sacrificing the meter’s primary real-time performance.

Q2: How does a Programmable Smart PLC Energy Meter handle frequency deviations during grid disturbances, and can it trigger protective actions?
A2: The Programmable Smart PLC Energy Meter continuously tracks zero-crossing points of the voltage waveform to calculate frequency every 10 cycles (200ms). When frequency drifts beyond user-set thresholds—for example, below 49.5 Hz or above 50.5 Hz—the meter’s internal PLC logic evaluates the rate of change (df/dt). If df/dt exceeds 0.5 Hz/s, the meter instantly sets a digital output that can trip a master contactor or send a GOOSE message over Ethernet to upstream protection relays. Gomelong models include a dedicated “frequency slew-rate” register that stores the last 100 frequency samples with timestamps, enabling engineers to distinguish between a transient dip and a genuine under-frequency load-shedding event. This feature is particularly vital for cogeneration plants that must synchronize with the grid within tight frequency windows.

Q3: Can I export real-time PF and THD data from the Programmable Smart PLC Energy Meter to a cloud-based SCADA without losing synchronization?
A3: Yes, but synchronization depends on the meter’s buffering mechanism. Many meters send data via RS485 or Ethernet with a polling delay that varies with network traffic—this breaks time-stamp alignment between voltage and current measurements. Gomelong solves this by equipping its Programmable Smart PLC Energy Meter with a built-in real-time clock (RTC) synchronized via NTP or GPS. Each PQ data point (THD, PF, Frequency) is tagged with an absolute timestamp at the moment of calculation, not at the moment of transmission. When using the PLC power-line communication (PLC) feature, the meter also embeds a sequence counter, so even if packets arrive out of order, the SCADA reconstructs the exact chronological sequence. For cloud integration, the meter supports MQTT over TLS, pushing JSON payloads at configurable intervals (e.g., 1 second for PF, 5 seconds for THD), ensuring that your historical trend analysis remains chronologically accurate regardless of internet latency.

Why Choose Gomelong for Your Power Quality Needs

Many meters claim “real-time” but deliver near-real-time with significant latency. Gomelong differentiates itself through three engineering pillars: (1) hardware-level timestamping on every PQ parameter, (2) user-programmable alarm logic that executes within the same scan cycle as the measurement, and (3) seamless integration with both legacy RS485 networks and modern IoT cloud platforms. Our Programmable Smart PLC Energy Meter has been independently tested to meet Class 0.5S accuracy for active energy and Class 2 for harmonic distortion, certified by TÜV and UL.

Final Verdict

To directly answer the title question: Yes, a Programmable Smart PLC Energy Meter does support real-time power quality analysis—but only when the device combines high-speed sampling, programmable logic execution, and precise time-stamping. Off-the-shelf meters that merely display THD, PF, and Frequency on a screen without actionable outputs fail the “real-time” test. A Gomelong Programmable Smart PLC Energy Meter not only displays these values but transforms them into control actions, alarms, and trend logs that genuinely improve system reliability and energy efficiency.

Ready to upgrade your power quality monitoring with a truly intelligent device? Contact our engineering support team today to request a sample unit, review your harmonic profile, or schedule a live demo of the Gomelong Programmable Smart PLC Energy Meter dashboard. We provide free pre-sales consultation, custom CT/VT configuration, and 24/7 technical backup. Reach us via the contact form on our website or call your regional Gomelong representative—let us help you turn raw power data into operational intelligence.
