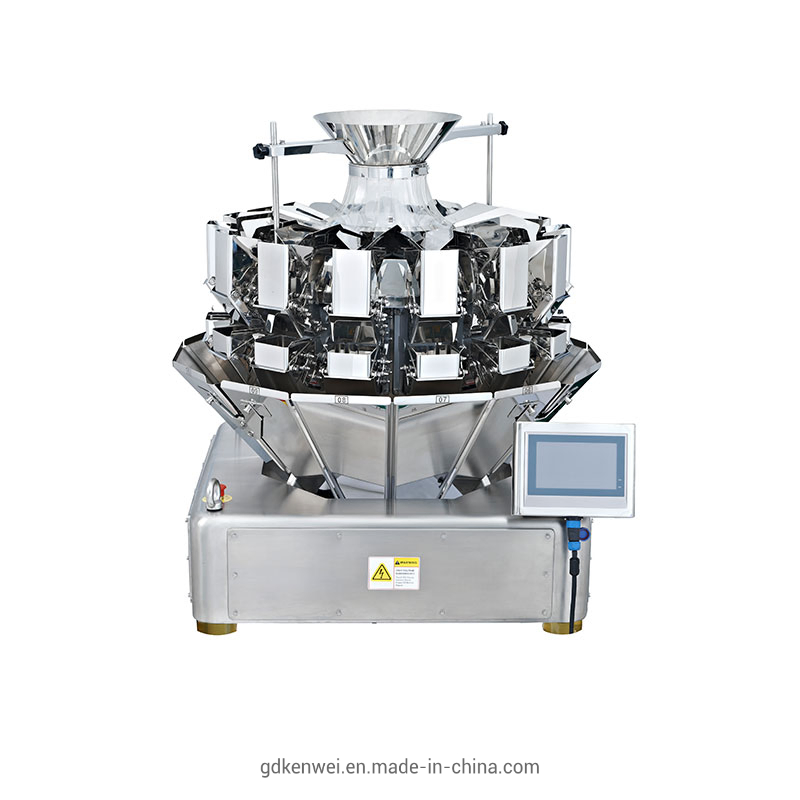

Weighing Coffee and Sugar Packing Machine Mini 16 Heads Scale

Product Description

Features :

1. Use high precision, high resolution specially designed loadcell;
2. Program recovery function can reduce operation failures and support multi-segment weight calibration;
3. No products auto pause function can improve weighing stability and accuracy;
4. 100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation;
5. Linear amplitude can be adjusted independently in the running;
6. Many languages available for global markets.

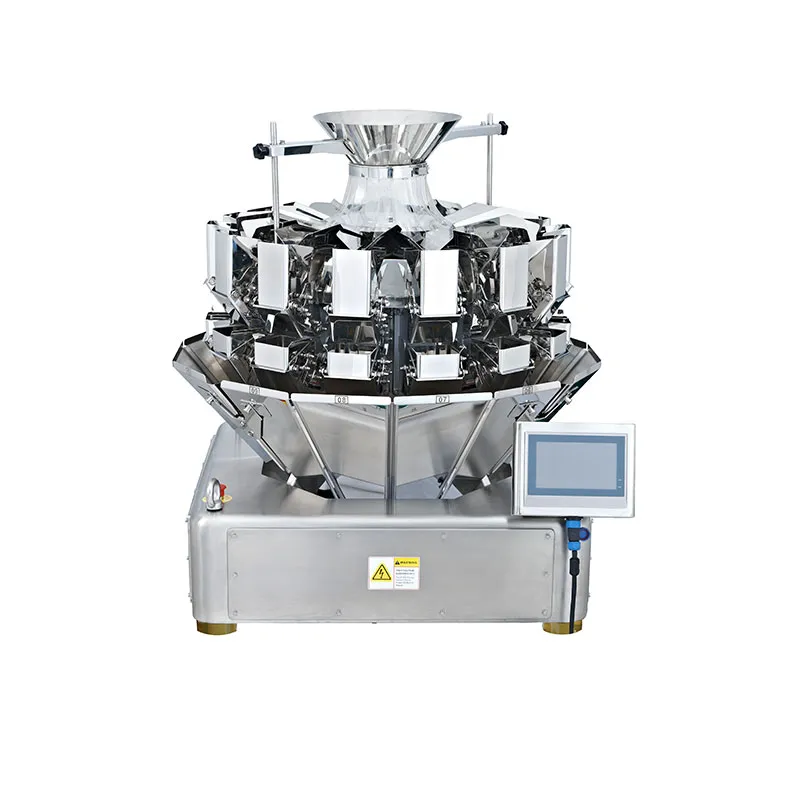

Weighing Coffee and Sugar Packing Machine Mini 16 Heads Scale

Techanical and Character :

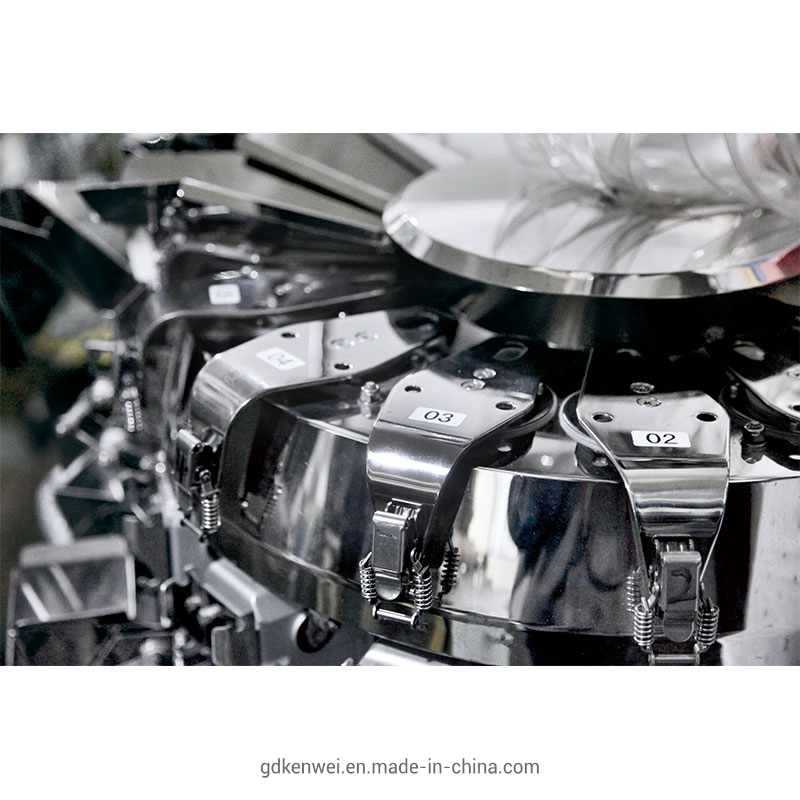

1. 0.5L hopper, super low vibrating design to ensure more stable running and higher weighing accuracy;

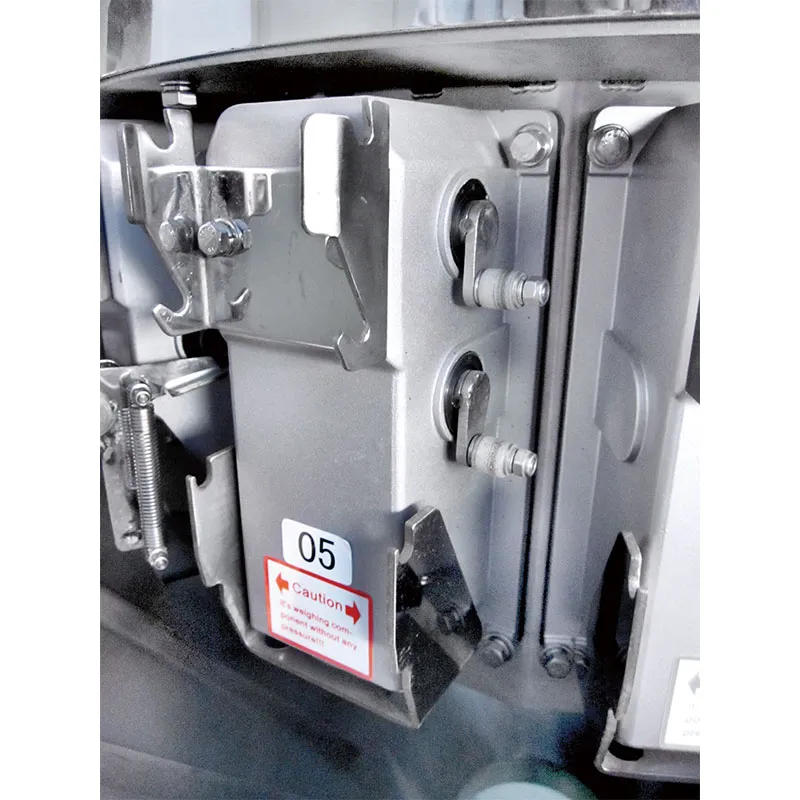

2. New double parallel linear vibrator contributes to smaller vibration, side-driven actuator makes the reading more accurate and the weighing accuracy higher;
3. Use weighing type for material detection to make accurate control of feeding time & material thickness and ensure weighing accuracy;

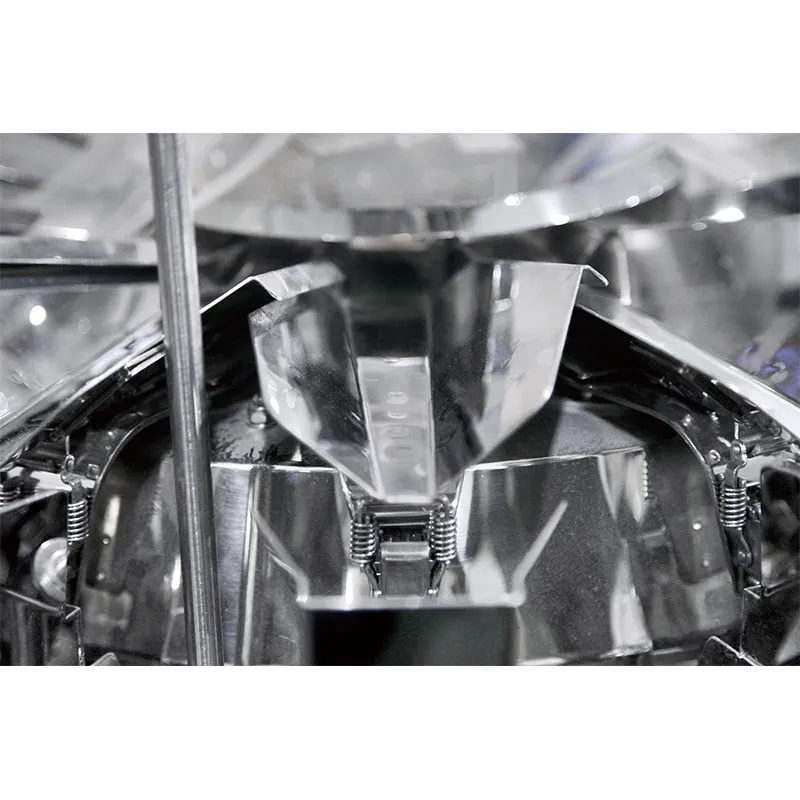

4. V feeder pan especially designed for small target weight to ensure even feeding and weighing accuracy;

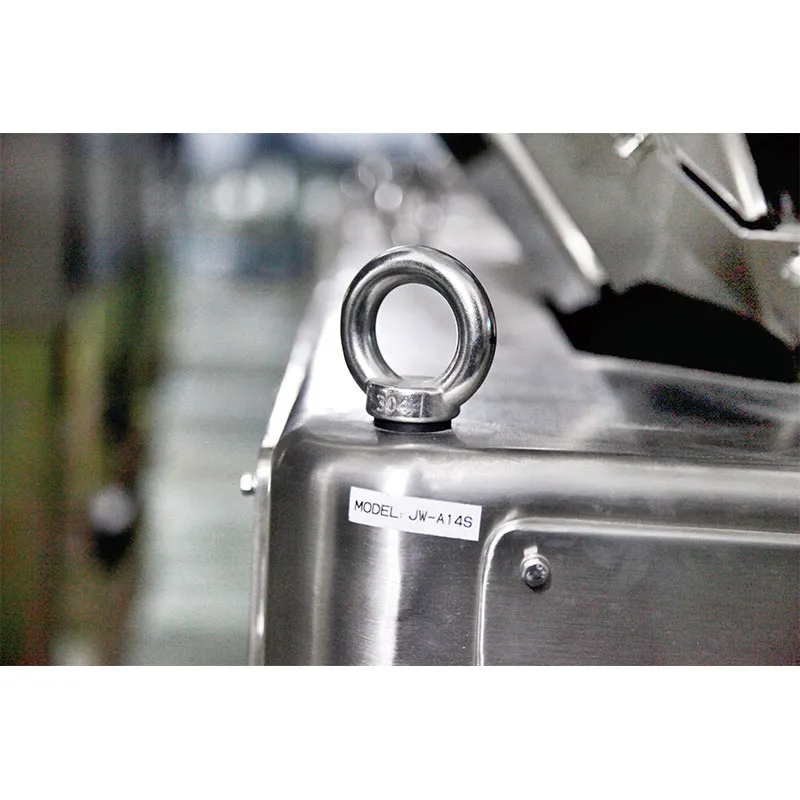

5. Integral machine frame with middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter;
6. Arc-shaped machine body with large R treatment improves the stability and appearance.

Technical Specification :

Model	JW-A10	JW-A14
Identify Code	AS10-1-1	AS14-1-1
Weighing Range	5-200g	5-200g
Accuracy	X(0.5)	X(0.5)
Max Speed	60P/M	120P/M
Hopper Volume	0.5L
Control Panel	7''Touch Screen
Options	Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System	Step Motor
Power Requirement	220V/900W/ 50/60Hz /8A	220V/1100W/ 50/60Hz /10A

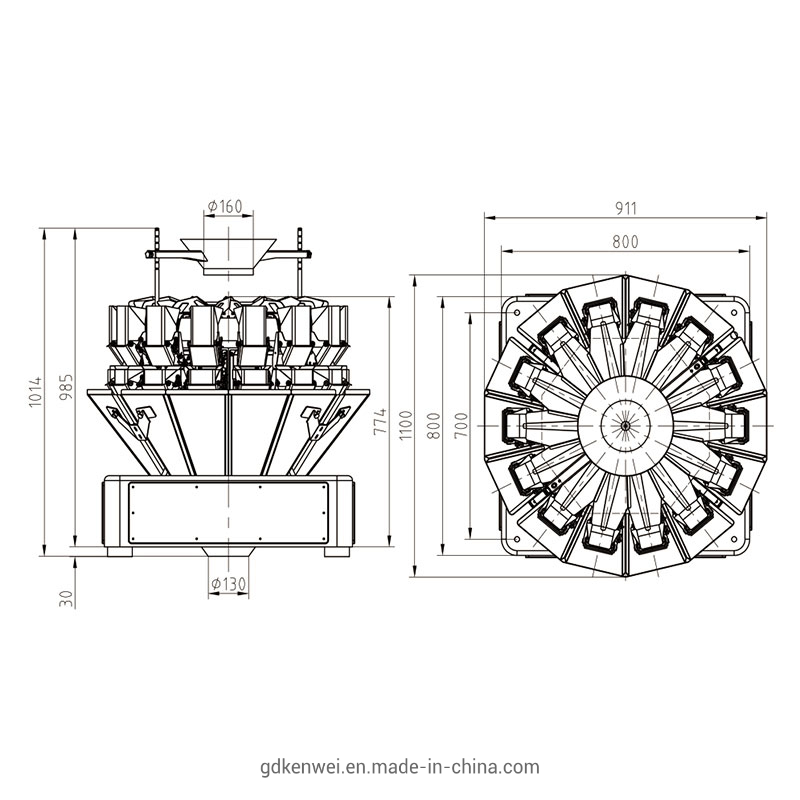

Packing Dimension(mm)	1190(L)970(W)950(H)	1190(L)970(W)950(H)
Gross Weight	220kg	240kg

Application:

It is suitable for weighing small weight granules such as seeds, tea, coffee beans etc.

Weighing Coffee and Sugar Packing Machine Mini 16 Heads Scale

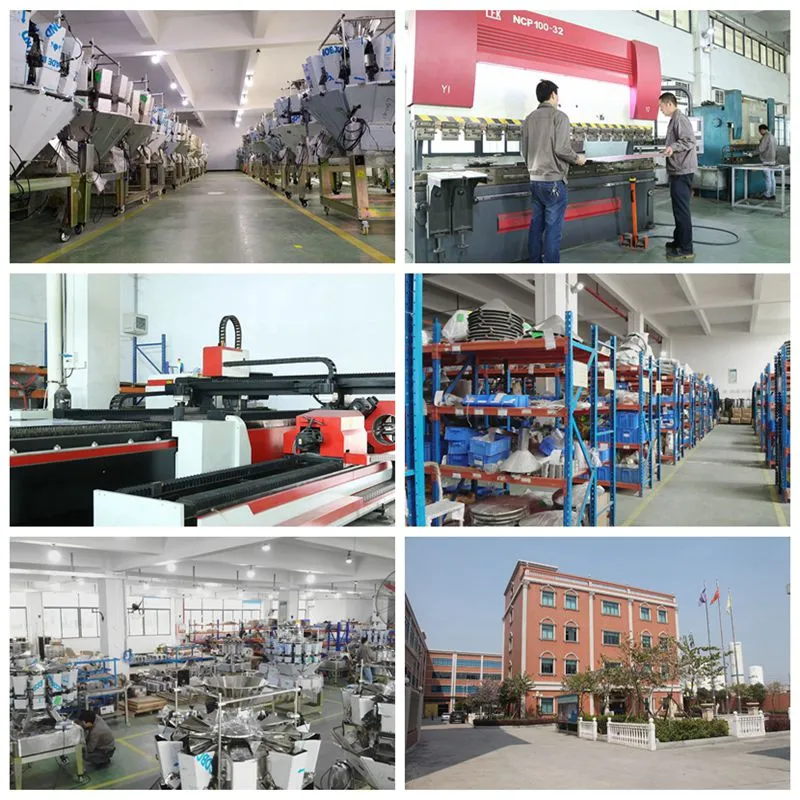

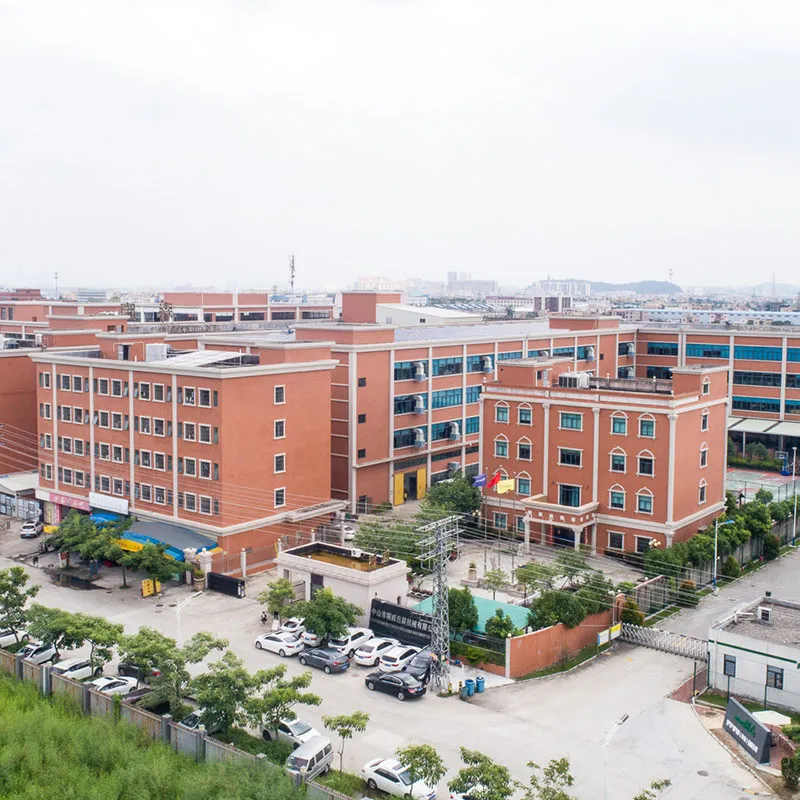

Our Factory:
Weighing Coffee and Sugar Packing Machine Mini 16 Heads Scale

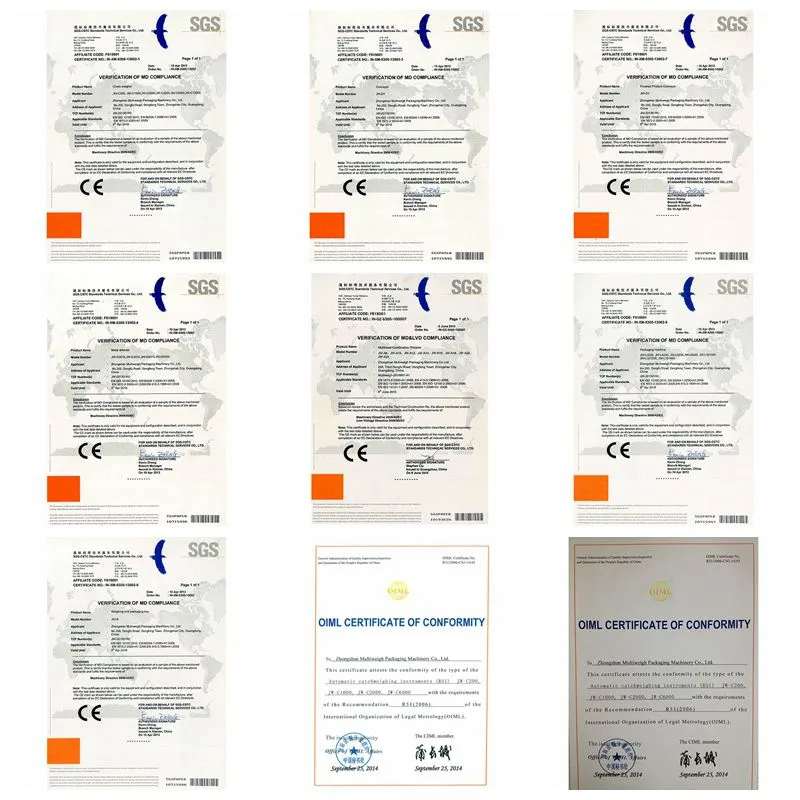

Certificate:

Exhibition:

Activity:
Weighing Coffee and Sugar Packing Machine Mini 16 Heads Scale

Service:

Pre-sale Inquiry
We will help you customize an appropriate weighing and packing solution based on your requirements and specific circumstances.

Installation Service
We will send professional technicians for on-site installation and commissioning upon request.

Maintenance Service
Kenwei provides long term maintenance service,any maintenance parts are free within the warranty period and only charge parts expensed if your warranty has expired.

Employee Training
Kenwei offers free technical training for our clients to fully master correct product maintenance techniques.

Custom Service
Kenwei designs custom production lines for our clients according to specific weighing and packing products,output,packing styles,factory area and other factors.

Weighing Coffee and Sugar Packing Machine Mini 16 Heads Scale

Guangdong Kenwei Intellectualized Machinery Co.,Ltd. is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.
Kenwei, located in Hi-tech Industrial Zone, owns modern workshop over 21000 square meterwith annual production capacity of more than 5,000 sets of multihead weigher . We have a high-quality team that professional technicians more than 30% with comprehensive capacity from design and development, manufacturing, marketing, installation and commissioning, technical training,after-sales services and providing automatic weighing packaging system customization.With the development of international markets, more and more marketing and service networks are established all over the world. We won trusts and good reputations for good and fast services, which also help us to establish good brand image in the packaging machinery industry We are now selling machines to more than 80 countries in the world.
