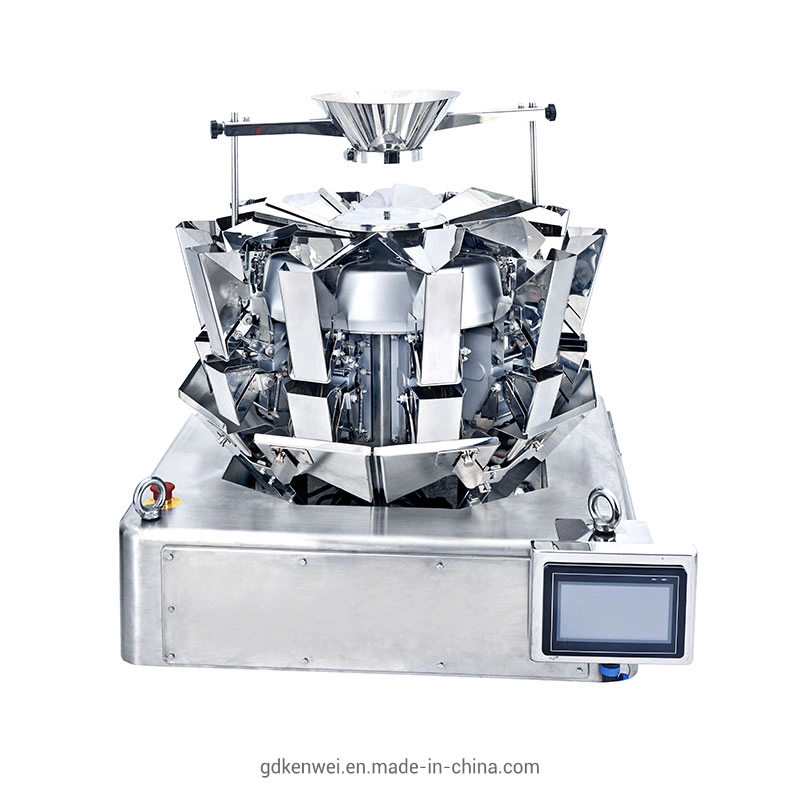

14 Head Super Mini Combination Weigher for Chinese Medicines

Product Description

Features :
1.Adopt high accurate loadcell of famous brand, resolution is improved up to 2 decimal;
2.Program recovery function can reduce operation failures and support multi-segment weight
calibration;
3.No products auto pause function can improve weighing stability and accuracy;
4.100 programs capacity can meet various weighing requirements and user-friendly help menu
contributes to easy operation;
5.Linear amplitude can be adjusted independently;
6.Many languages available for global markets.

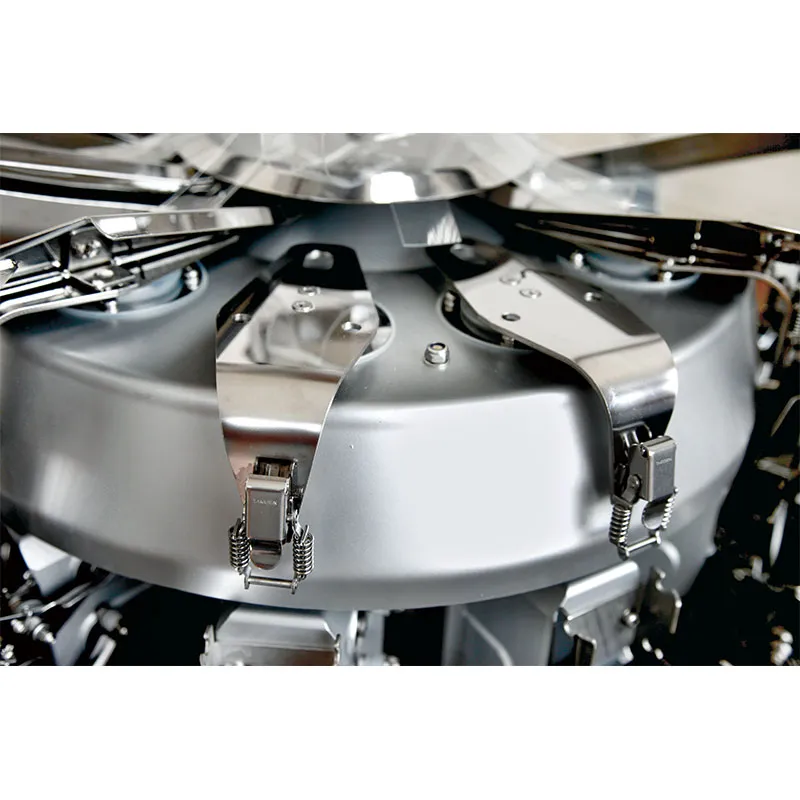

14 Head Super Mini Combination Weigher for Chinese Medicines

Techanical and Character :

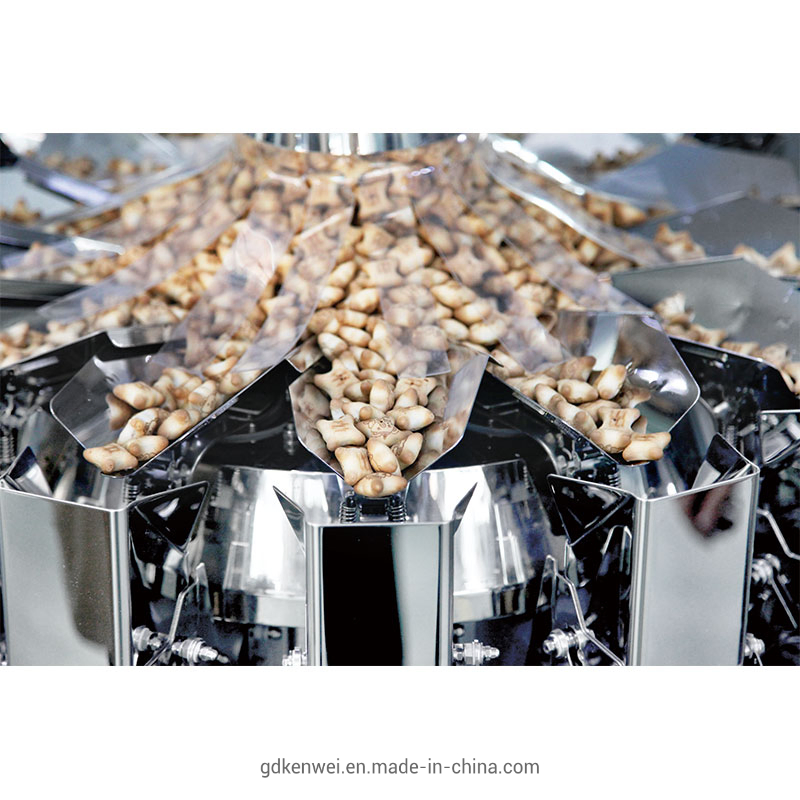

1. 0.3L hopper, low vibrating design, good performance;

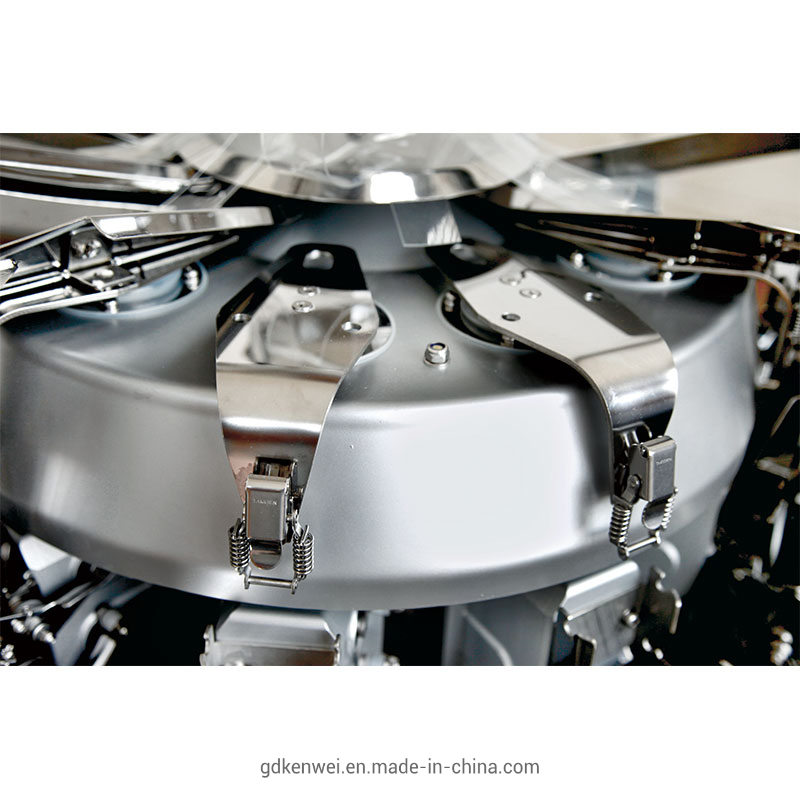

2.New double parallel linear vibrator contributes to smaller vibration, side-driven actuator makes the
   reading more accurate and the weighing accuracy higher;
3.Use weighing type for material detection to make accurate control of feeding time & material
   thickness and ensure weighing accuracy;
4.V feeder pan especially designed for small target weight to ensure even feeding and weighing
   accuracy;
5.Integral machine frame with middle standing enhances the strength of the machine, making the time
   for stabilizing hoppers much shorter;
6.Arc-shaped machine body with large R treatment improves the stability and appearance.

Technical Specification :

Model	JW-A10	JW-A14
Identify Code	AS10-1-2	AS14-1-2
Weighing Range	5-60g	5-60g
Accuracy	X(0.5)	X(0.5)
Max Speed	60P/M	120P/M
Hopper Volume	0.3L
Control Panel	7"Touch Screen
Options	Dimple Plate/Timing Hopper/Printer/Reject Device
Driving System	Step Motor
Powder Requirement	220V/900W/ 50/60Hz /8A	220V/1100W/ 50/60Hz /10A
Packing Dimension(mm)	1190(L)970(W)950(H)	1190(L)970(W)950(H)
Gross Weight	180kg	220kg

Application:

It is suitable for weighing small weight granules such as seeds, tea, coffee beans etc.
14 Head Super Mini Combination Weigher for Chinese Medicines

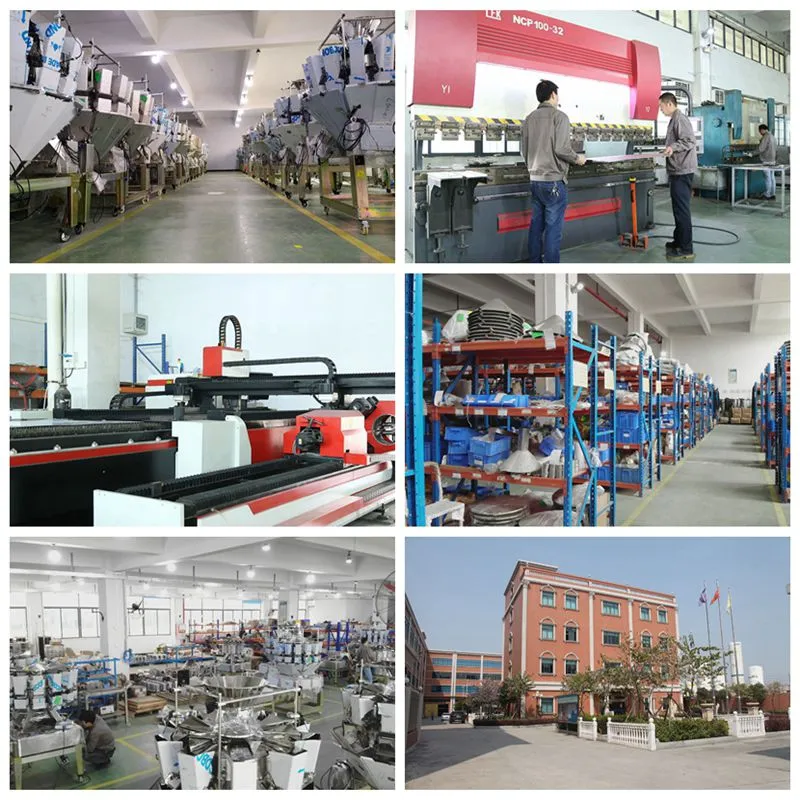

Our Factory:
14 Head Super Mini Combination Weigher for Chinese Medicines

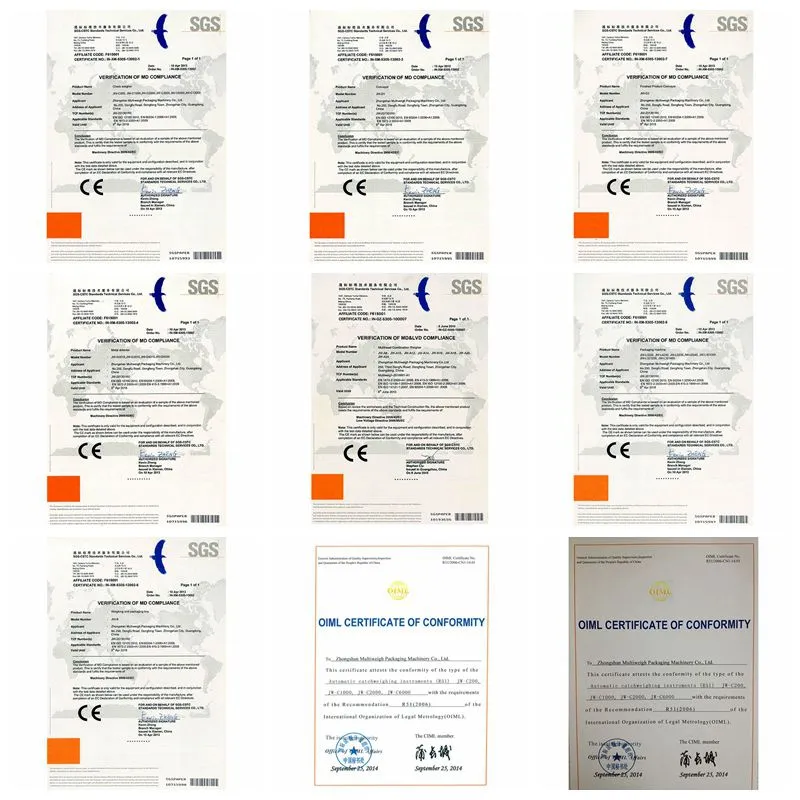

Certificate:

Exhibition:

Service:

Pre-sale Inquiry
We will help you customize an appropriate weighing and packing solution based on your requirements and specific circumstances.

Installation Service
We will send professional technicians for on-site installation and commissioning upon request.

Maintenance Service
Kenwei provides long term maintenance service,any maintenance parts are free within the warranty period and only charge parts expensed if your warranty has expired.

Employee Training
Kenwei offers free technical training for our clients to fully master correct product maintenance techniques.

Custom Service
Kenwei designs custom production lines for our clients according to specific weighing and packing products,output,packing styles,factory area and other factors.

14 Head Super Mini Combination Weigher for Chinese Medicines

Guangdong Kenwei Intellectualized Machinery Co.,Ltd. is currently a large production base of multihead weighers. As a professional manufacturer, we devote to R&D and manufacturing of multihead weighers, linear weighers, check weighers, metal detectors with high speed and high accuracy. We also provide customers with complete automatic weighing and packaging systems to meet the various customized requirements.

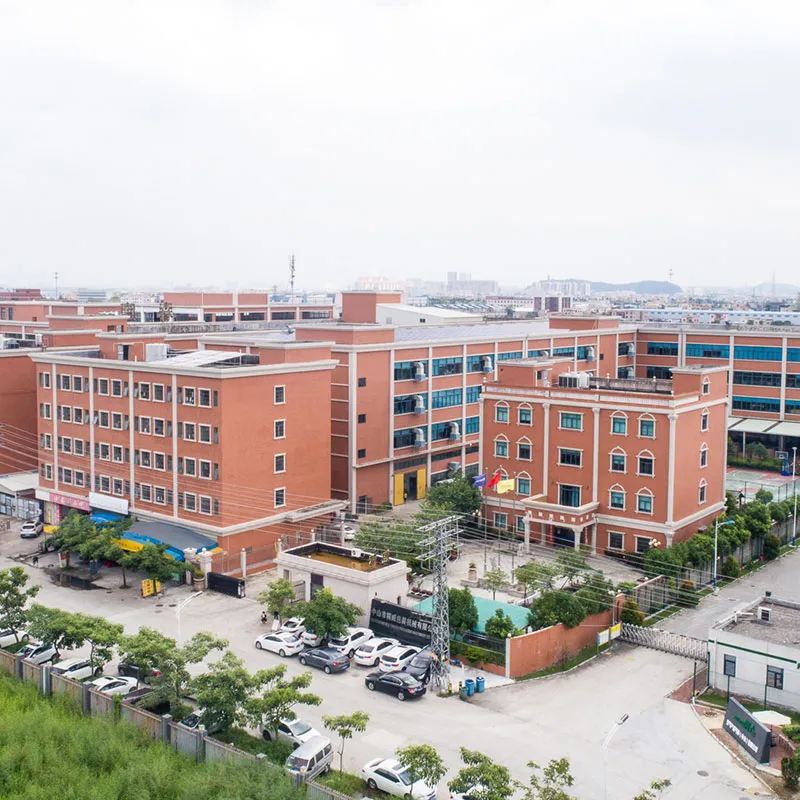

Kenwei, located in Hi-tech Industrial Zone, owns modern workshop over 21000 square meterwith annual production capacity of more than 5,000 sets of multihead weigher . We have a high-quality team that professional technicians more than 30% with comprehensive capacity from design and development, manufacturing, marketing, installation and commissioning, technical training,after-sales services and providing automatic weighing packaging system customization.With the development of international markets, more and more marketing and service networks are established all over the world. We won trusts and good reputations for good and fast services, which also help us to establish good brand image in the packaging machinery industry We are now selling machines to more than 80 countries in the world.
